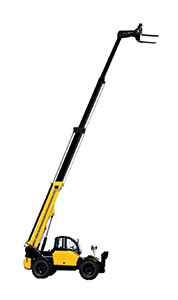

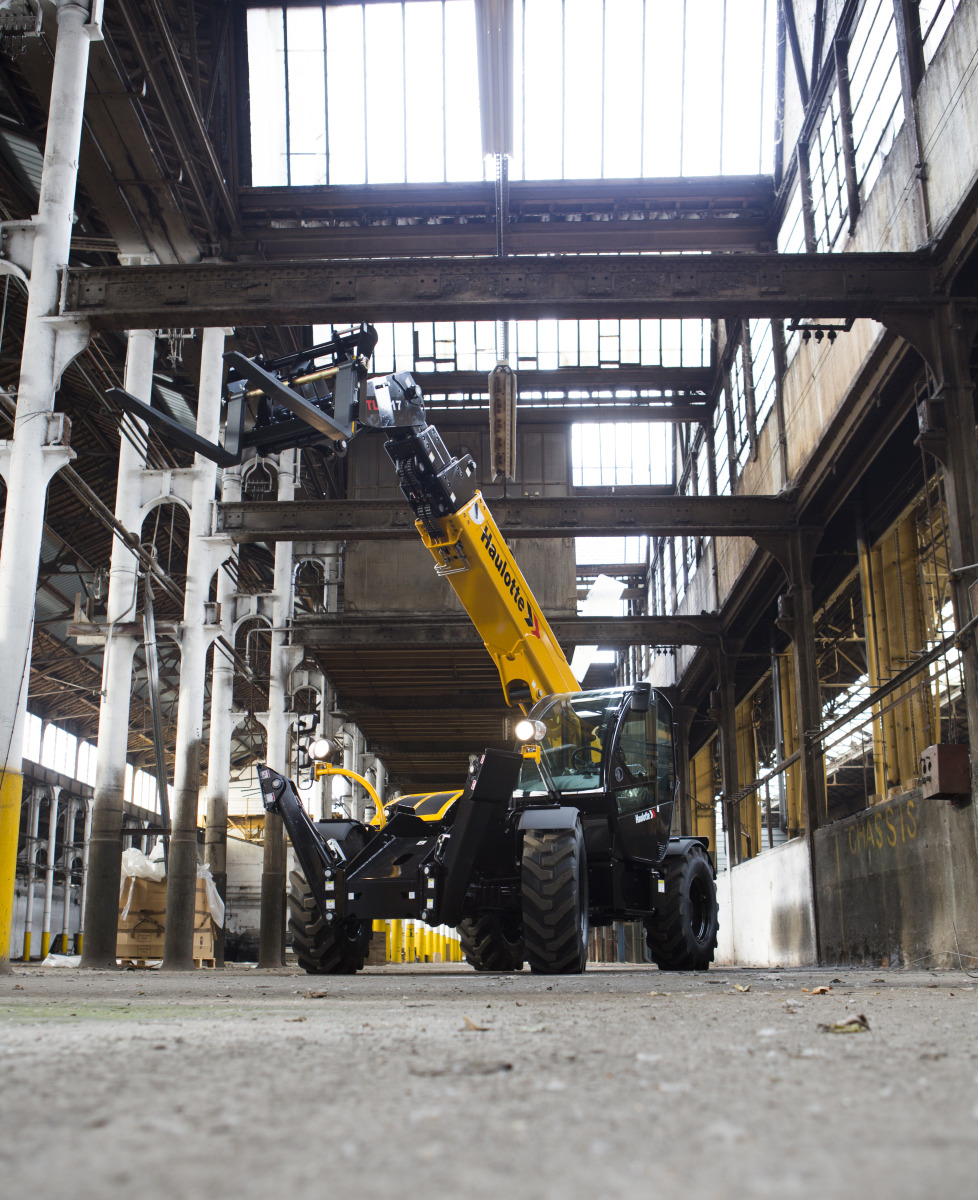

HTL4017 - Telehandler


General Properties
- Backlighted e-tronic dashboard
- Hydrostatic transmission
- 4 wheel drive and steer
- Safety valves on hydraulic jacks
- Auxiliary hydraulic system
- Cut-off of dangerous movements when overloaded
- Tilt corrector: ±10°
- ROPS/FOPS cabin with heating and ventilation
- Hydraulic rear axle locking
Technical Properties
Maximum lift capacity | 4000 kg |
Lift capacity to full height | 2500 kg |
Lift capacity at full reach | 700 kg |
Maximum fork height | 16.7 m |
Reach at maximum fork height | 2.4 m |
Maximum forward reach | 12.85 m |
Length | 6.65 m |
Width | 2.43 m |
Height | 2.6 m |
Wheelbase | 2.89 m |
Ground clearance | 50 cm |
Track width | 1.93 m |
Cab width | 0.96 m |
Turning radius (outside wheels) | 4.5 m |
Weight with forks | 12000 kg |
