Haulotte·Articulating Boom Lifts
HA 12 CJ
The Haulotte HA 12 CJ is an electric articulating boom lift offering 11.7 m working height, 250 kg platform capacity, 6.94 m outreach. A boom that reaches up and over obstacles. Precise access to difficult points.
- Working height
- 11.7 m
- Platform capacity
- 250 kg
- Outreach
- 6.94 m
- Machine weight
- 7.07 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the HA 12 CJ?
- Simultaneous driving and turret rotation
- Tight turning radius
- Zero tail swing
- Compact stowed height allows passage through standard doorways
- 1.20 m width
- Proportional and simultaneous movements
- Suitable for both indoor and outdoor use
- Long duty cycle

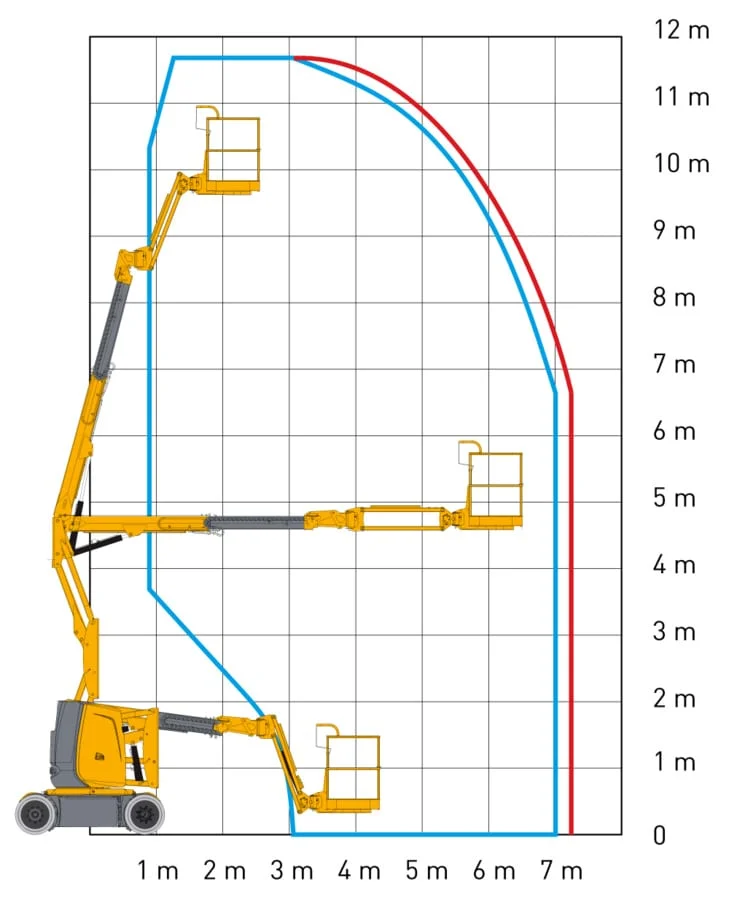

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · Articulating Boom Lifts
Technical specifications
Haulotte HA 12 CJ
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)
| Working height | 11.70 m |
|---|---|
| Platform height | 9.68 m |
| Outreach | 6.94 m |
| Height at maximum outreach | 4.74 m |
| Load capacity | 250 kg |
| Width | 1.2 m |
| Stowed height | 1.99 m |
| Gradeability | 25% |
| Energy | 48 V - 320 Amph (C5) |
| Weight | 7,065 kg |
FAQ
Questions about the HA 12 CJ
How high does the Haulotte HA 12 CJ reach?
The Haulotte HA 12 CJ reaches a working height of 11.7 m (platform height 9.68 m). Its horizontal outreach is 6.94 m.
What is the platform capacity of the Haulotte HA 12 CJ?
The Haulotte HA 12 CJ carries up to 250 kg on the platform. The machine weighs 7.07 t.
Can the Haulotte HA 12 CJ be used indoors?
Yes. The electric Haulotte HA 12 CJ is suitable for indoor use and can also work outdoors.
Where can I buy the Haulotte HA 12 CJ in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the HA 12 CJ across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
Get a quote
Get the price and delivery time for the HA 12 CJ.
Our sales team will assess your job site and prepare an offer with the best configuration, options and delivery plan for you.
- New and used options
- On-site demonstration
- Service and spare parts backing
