Haulotte·Articulating Boom Lifts
SIGMA 16
The Haulotte SIGMA 16 is an electric articulating boom lift offering 16.1 m working height, 230 kg platform capacity, 8.35 m outreach. A boom that reaches up and over obstacles. Precise access to difficult points.
- Working height
- 16.1 m
- Platform capacity
- 230 kg
- Outreach
- 8.35 m
- Machine weight
- 6.9 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the SIGMA 16?
- Maximum outreach and working height
- Haulotte Activ’Screen integrated smart display for easy troubleshooting and settings
- Long battery life with the Haulotte Activ'Energy management system
- Simultaneous movements
- Indoor and outdoor use
- 230 kg platform capacity for 2 persons
- Horizontal jib movement for access to hard-to-reach areas
- Tight turning radius & zero tail swing
- Fully proportional controls

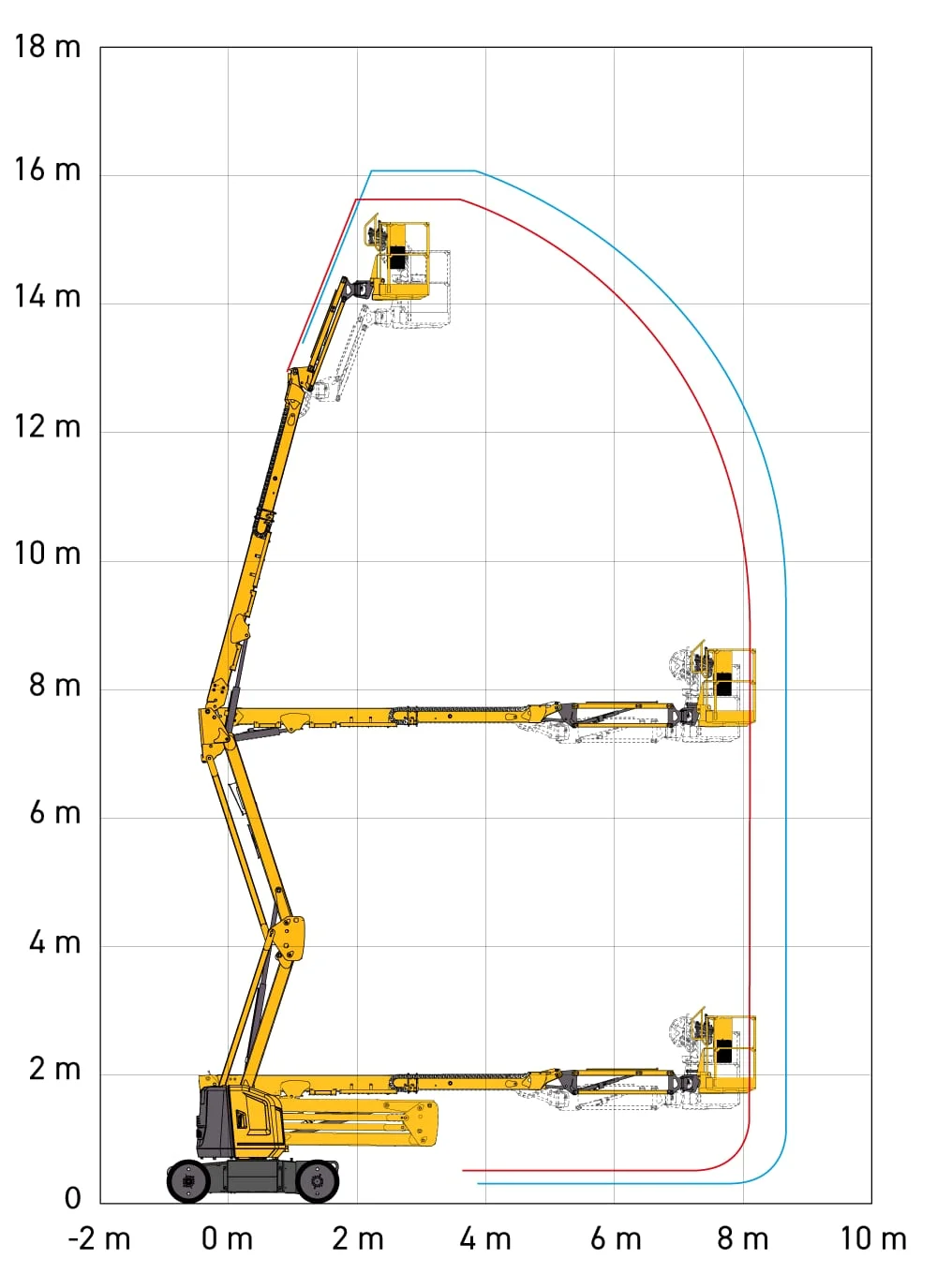

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · SIGMA 16

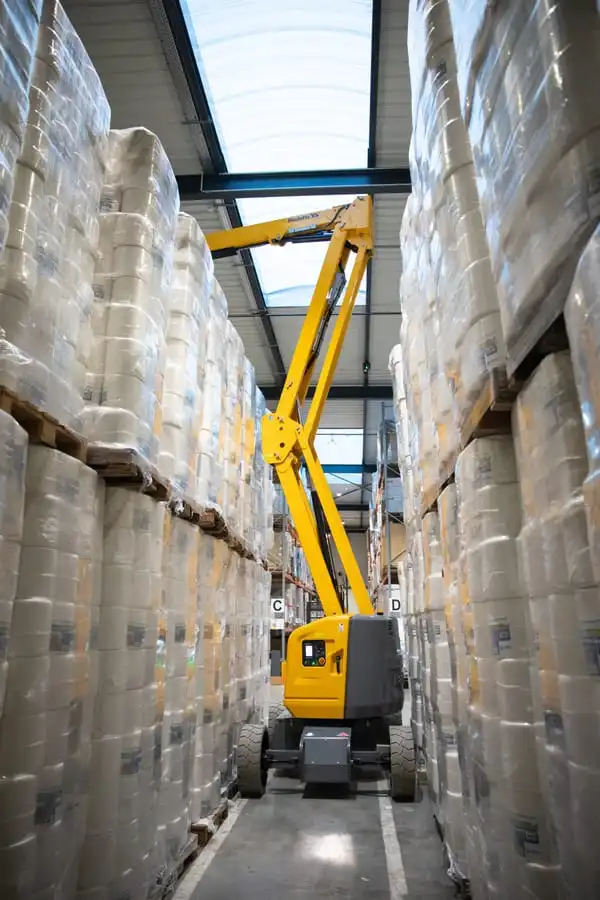

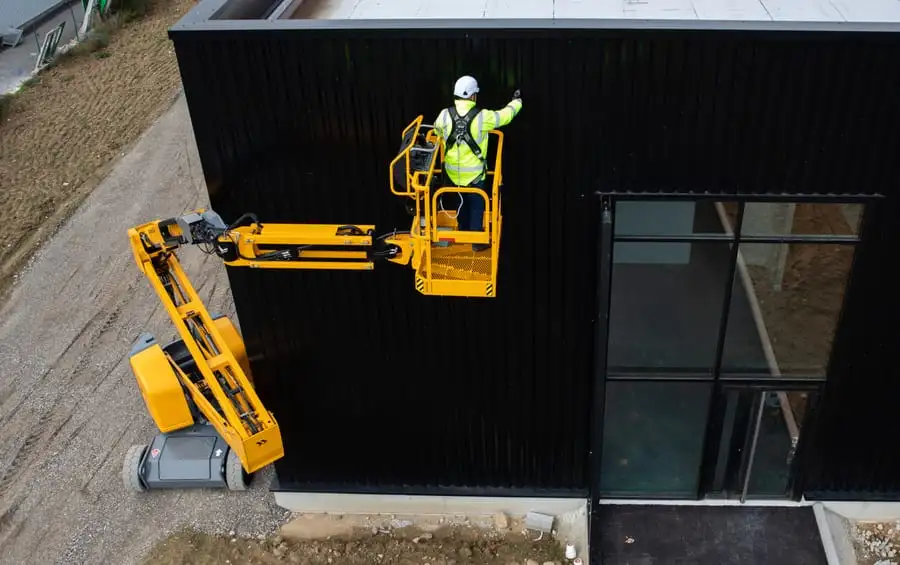

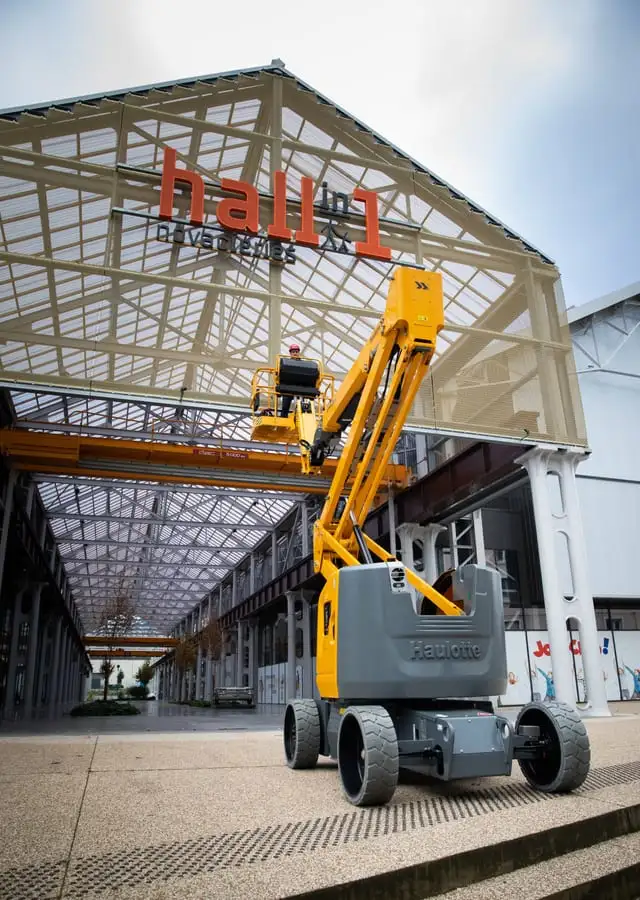

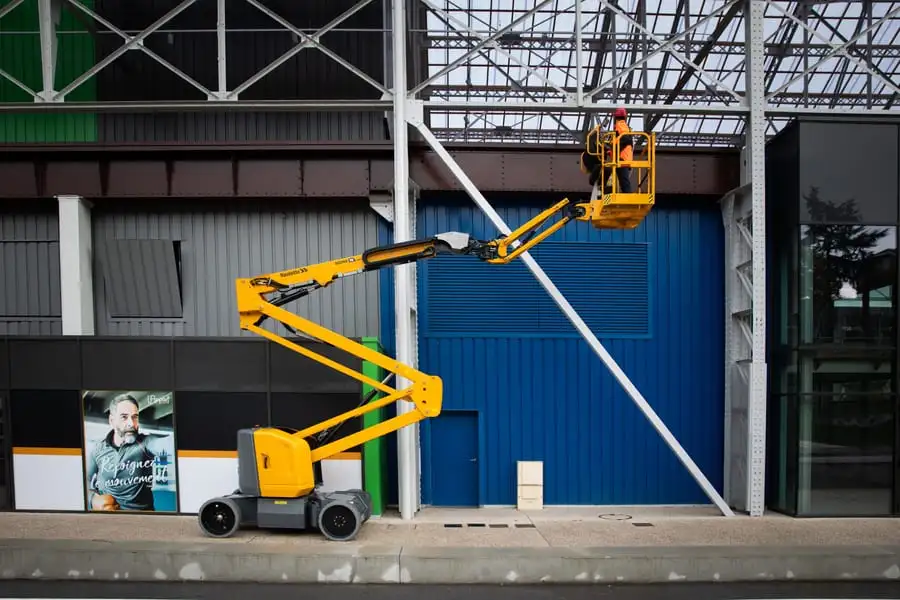

SIGMA 16 in action
Haulotte · Articulating Boom Lifts

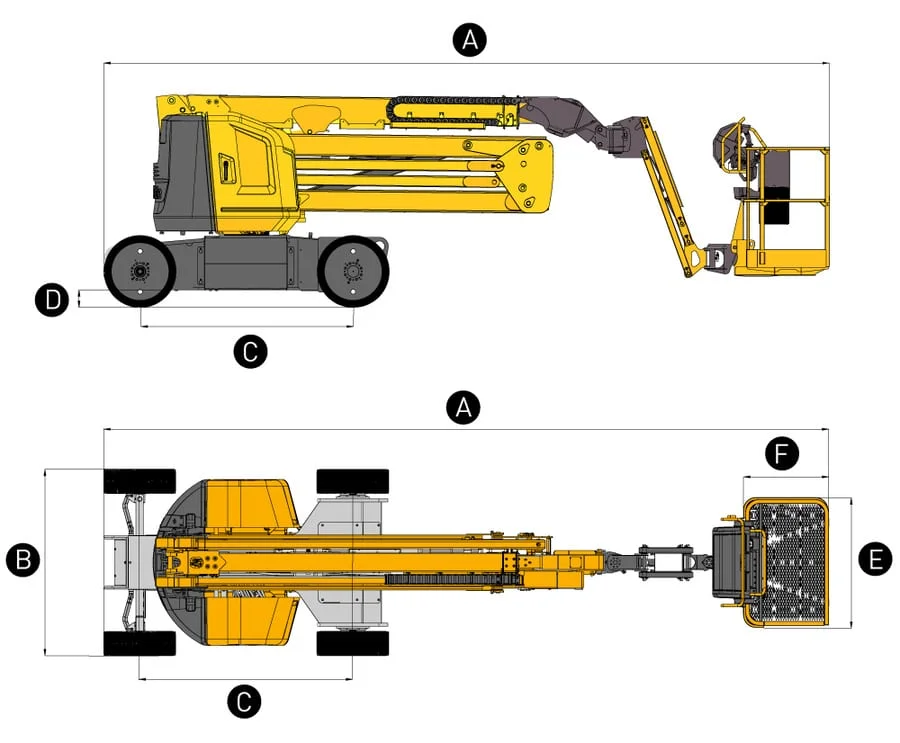

Technical specifications
Haulotte SIGMA 16
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)
| Working height | 16.10 m |
|---|---|
| Platform height | 14.10 m |
| Outreach | 8.35 m |
| Height at maximum outreach | 7.40 m |
| Load capacity | 230 kg |
| Width | 1.75 m |
| Stowed height | 2.00 m |
| Gradeability | 25% |
| Energy | 8 X 6 V - 435 Ah (C20) |
| Weight | 6900 kg |
FAQ
Questions about the SIGMA 16
How high does the Haulotte SIGMA 16 reach?
The Haulotte SIGMA 16 reaches a working height of 16.1 m (platform height 14.1 m). Its horizontal outreach is 8.35 m.
What is the platform capacity of the Haulotte SIGMA 16?
The Haulotte SIGMA 16 carries up to 230 kg on the platform. The machine weighs 6.9 t.
Can the Haulotte SIGMA 16 be used indoors?
Yes. The electric Haulotte SIGMA 16 is suitable for indoor use and can also work outdoors.
Where can I buy the Haulotte SIGMA 16 in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the SIGMA 16 across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
Get a quote
Get the price and delivery time for the SIGMA 16.
Our sales team will assess your job site and prepare an offer with the best configuration, options and delivery plan for you.
- New and used options
- On-site demonstration
- Service and spare parts backing
