Haulotte·Towable & Push-Around Platforms
Quick Up 14
The Haulotte Quick Up 14 is an electric push-around vertical mast lift offering 13.7 m working height, 136 kg platform capacity. Lightweight and portable: plug in and get to work.
- Working height
- 13.7 m
- Platform capacity
- 136 kg
- Platform height
- 11.7 m
- Machine weight
- 497 kg
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the Quick Up 14?
- Easy set-up
- Light and simple enough for one person to load, unload and set up
- Compact dimensions allow passage through standard doorways and set-up in confined spaces
- 0.75 m machine width and tight turning radius for work in even the tightest spaces
- Aluminium basket and mast
- Low machine weight allows set-up even on the most delicate floors

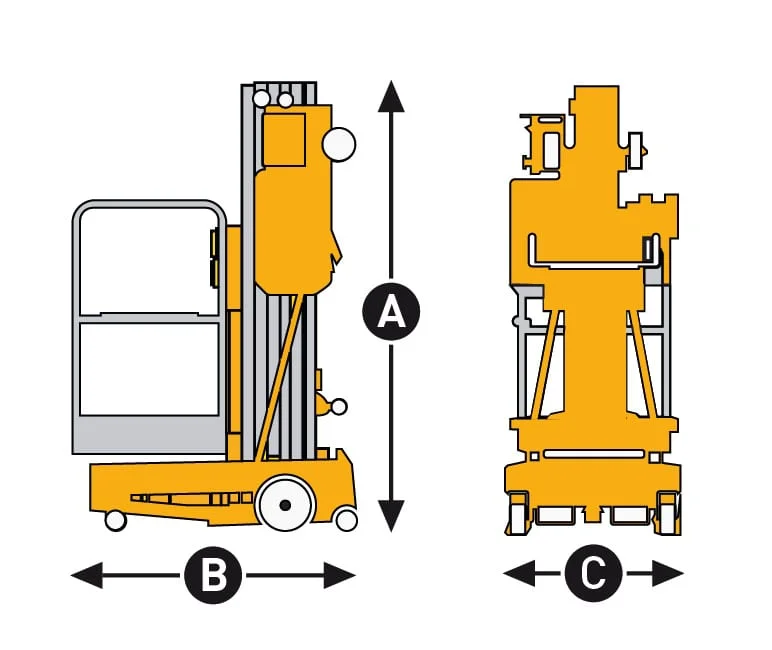

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · Quick Up 14

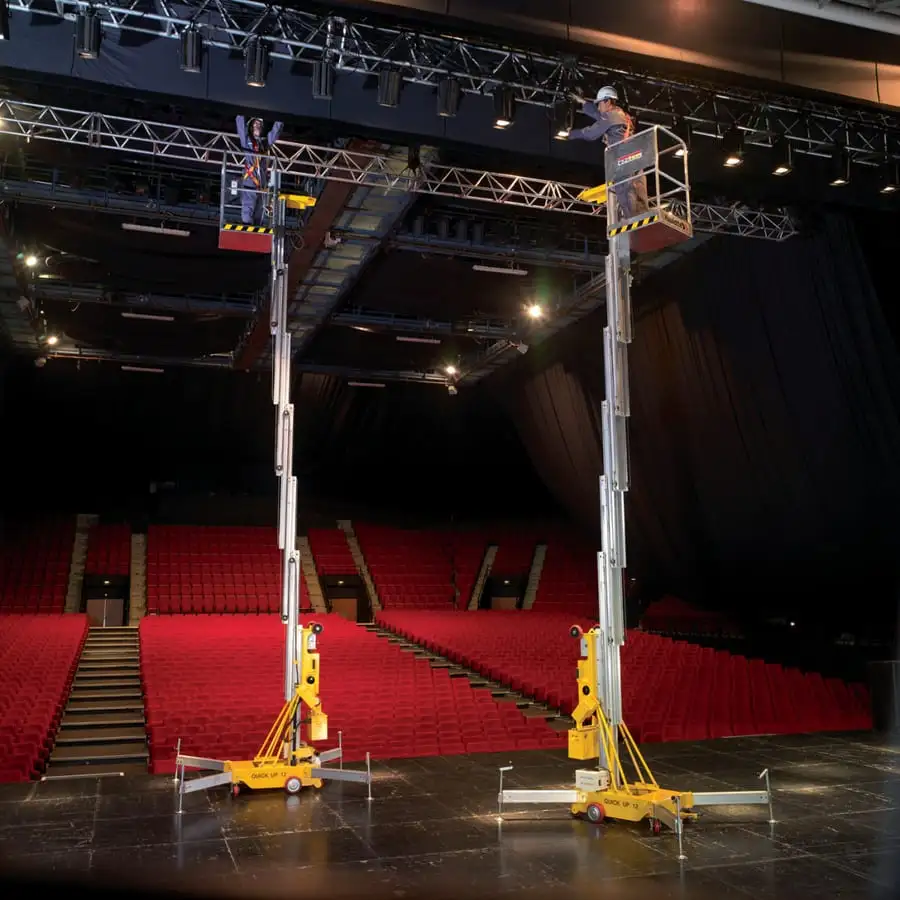

Quick Up 14 in action
Haulotte · Towable & Push-Around Platforms
Technical specifications
Haulotte Quick Up 14
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)
| Working height | 13.7 m |
|---|---|
| Platform height | 11.7 m |
| Load capacity | 136 kg |
| Platform size | 0.68 x 0.66 m |
| Stowed height | 2.7 m |
| Width | 0.8 m |
| Length | 1.47 m |
| Energy (AC) | 110 or 230 V |
| Weight (AC) | 455 kg |
| Weight (DC) | 497 kg |
FAQ
Questions about the Quick Up 14
How high does the Haulotte Quick Up 14 reach?
The Haulotte Quick Up 14 reaches a working height of 13.7 m (platform height 11.7 m).
What is the platform capacity of the Haulotte Quick Up 14?
The Haulotte Quick Up 14 carries up to 136 kg on the platform. The machine weighs 497 kg.
Can the Haulotte Quick Up 14 be used indoors?
Yes. The electric Haulotte Quick Up 14 is suitable for indoor use.
Where can I buy the Haulotte Quick Up 14 in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the Quick Up 14 across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
