HS21 E
The Haulotte HS21 E is an electric scissor lift offering 21.2 m working height, 750 kg platform capacity. Spacious platform, high capacity. The most efficient way to work at height vertically.
- Working height
- 21.2 m
- Platform capacity
- 750 kg
- Platform height
- 19.2 m
- Machine weight
- 10.62 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the HS21 E?
- Drivable at full height with no load restriction
- 750 kg platform capacity
- Double-extension 7.5 m wide platform for a larger working area and reach
- 100% electric drive system
- Quiet, clean operation suitable for indoor and outdoor use
- Manual and automatic differential lock for high traction on difficult ground
- Lithium-ion battery pack for long operating time, with 5-year battery warranty
- Activ’Screen on-board configuration and diagnostics interface
- Integrated display in the upper control box for real-time information
- Quick access to components for easy maintenance
- 4-wheel steering on the PRO model
- Self-aligning rear wheels on the PRO model
- Haulotte Activ’Lighting System (standard on the PRO model)
- Activ’Energy Management system for smart charging and battery management
- Outriggers with automatic or independent levelling
- Extended operating time with optional Range Extender

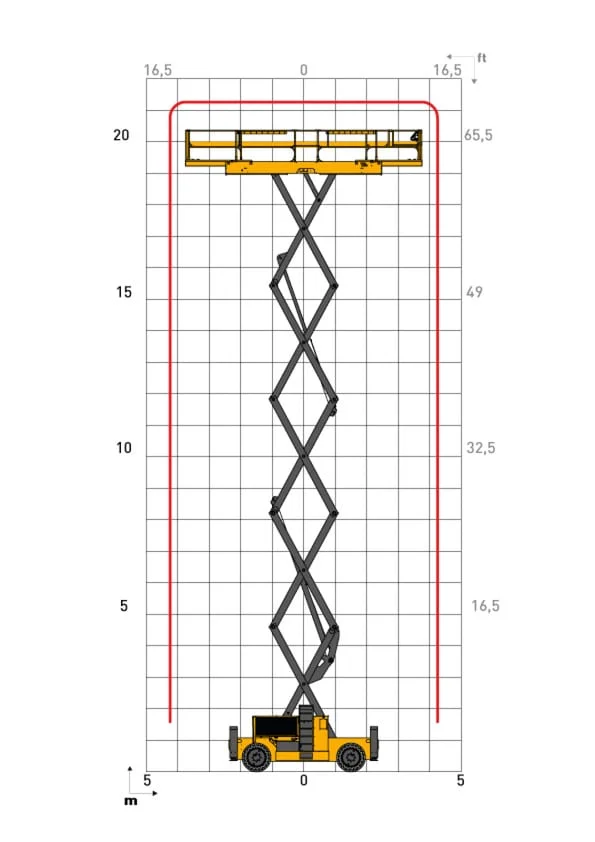

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · HS21 E

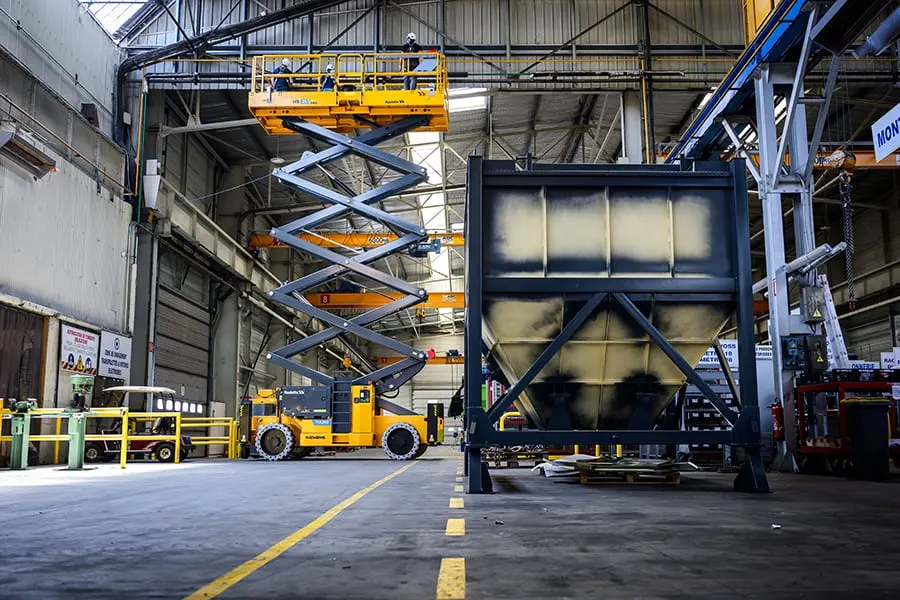

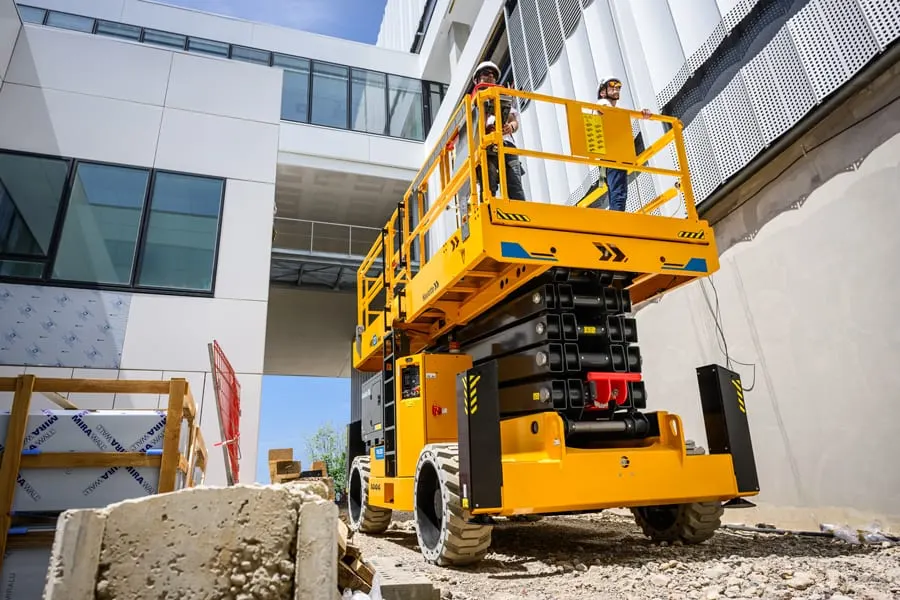

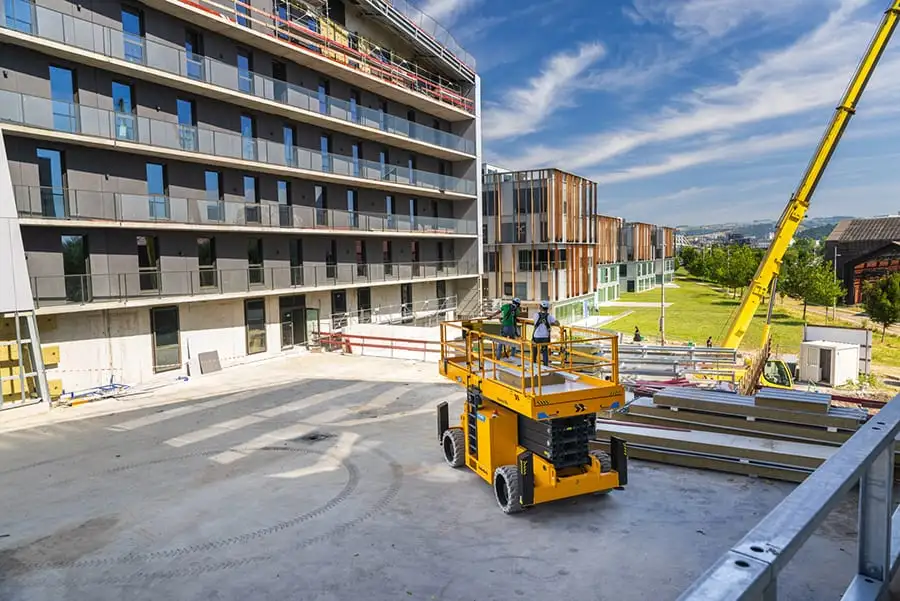

HS21 E in action
Haulotte · Scissor Lifts
Technical specifications
Haulotte HS21 E
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)
| Working height | 21.2 m |
|---|---|
| Platform height | 19.2 m |
| Platform capacity | 750 kg |
| Capacity on extension deck | 225 kg |
| Platform length | 4.96 m |
| Platform length (extended) | 7.51 m |
| Extension length | 1.28 m |
| Platform width | 2.08 m |
| Machine length | 4.96 m |
| Machine width | 2.43 m |
| Machine height | 3.52 m |
| Machine height (guardrails folded) | 2.72 m |
| Wheelbase | 3.00 m |
| Ground clearance | 31 cm |
| Micro drive speed | 0.8 km/h |
| Drive speed | 4.5 km/h |
| Gradeability | 38% |
| Longitudinal / lateral slope limit | 3.5° / 1.5° |
| Lifting / lowering time | 100 s |
| Turning radius (outside) | HS21 E: 7.45 m / HS21 E PRO: 4.40 m |
| Tyres | 910 x 355 mm |
| Battery | Li-ion 280 Ah |
| Nominal energy | 21.5 kWh |
| Hydraulic system capacity | 82 l |
| Machine weight | HS21 E: 10,620 kg / HS21 E PRO: 10,750 kg |
FAQ
Questions about the HS21 E
How high does the Haulotte HS21 E reach?
The Haulotte HS21 E reaches a working height of 21.2 m (platform height 19.2 m).
What is the platform capacity of the Haulotte HS21 E?
The Haulotte HS21 E carries up to 750 kg on the platform. The machine weighs 10.62 t.
Can the Haulotte HS21 E be used indoors?
Yes. The electric Haulotte HS21 E is suitable for indoor use and can also work outdoors.
Where can I buy the Haulotte HS21 E in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the HS21 E across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
