Haulotte·Trailer-Mounted Platforms
HTA16P
The Haulotte HTA16P is an electric trailer-mounted platform offering 15.7 m working height, 227 kg platform capacity, 8.2 m outreach. Hitch it to your vehicle and take it to the job.
- Working height
- 15.7 m
- Platform capacity
- 227 kg
- Outreach
- 8.2 m
- Machine weight
- 1.91 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the HTA16P?
- Automatic stabilisation system completed in 30 seconds
- Best in class, with stabilisation on slopes of up to 12.5°
- 700° turret rotation
- Telescopic upper boom and jib with 150° vertical articulation
- Upper boom capable of negative angles
- 325 cm diameter non-marking outrigger pads
- Forklift pockets on the machine
- Parking brake
- Proportional control system

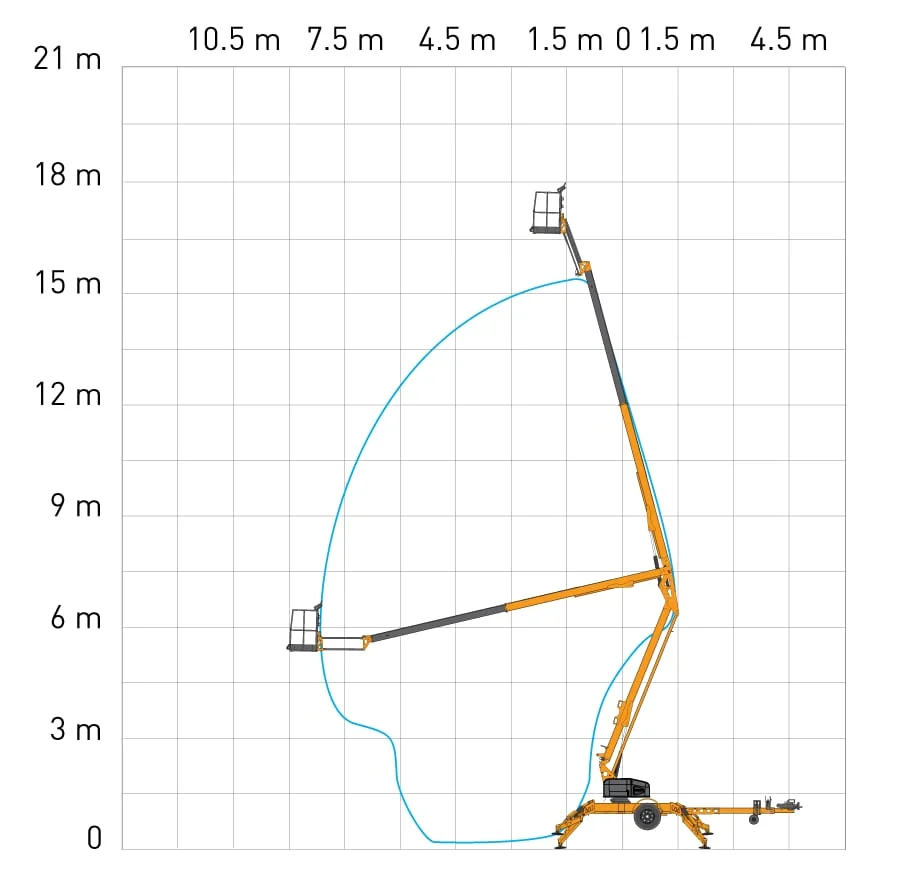

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · Trailer-Mounted Platforms
Technical specifications
Haulotte HTA16P
Values are based on manufacturer data and may vary with options and configuration.
| Working height | 15.7 m |
|---|---|
| Platform height | 13.7 m |
| Outreach | 8.2 m |
| Height at maximum outreach | 6.3 m |
| Platform capacity | 227 kg |
| Platform dimensions | 1.22 x 0.76 m |
| Outrigger footprint | 3.8 x 3.5 m |
| Stowed length | 5.9 m |
| Width | 1.65 m |
| Stowed height | 1.95 m |
| Max. levelling slope | 12.5° |
| Outriggers | Automatic |
| Wheels | ST 225/75 R15D |
| Weight | 1905 kg |
FAQ
Questions about the HTA16P
How high does the Haulotte HTA16P reach?
The Haulotte HTA16P reaches a working height of 15.7 m (platform height 13.7 m). Its horizontal outreach is 8.2 m.
What is the platform capacity of the Haulotte HTA16P?
The Haulotte HTA16P carries up to 227 kg on the platform. The machine weighs 1.91 t.
Can the Haulotte HTA16P be used indoors?
The Haulotte HTA16P is designed mainly for outdoor and job-site use.
Where can I buy the Haulotte HTA16P in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the HTA16P across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
