Star 10
The Haulotte Star 10 is an electric vertical mast lift offering 10 m working height, 200 kg platform capacity, 3 m outreach. Narrow aisles, standard doorways, delicate floors.
- Working height
- 10 m
- Platform capacity
- 200 kg
- Outreach
- 3 m
- Machine weight
- 2.74 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the Star 10?
- Smooth driving with proportional controls
- Drivable at maximum height
- Jib with 140° vertical articulation for more precise positioning at the work area
- Tight turning radius for work in even the tightest spaces
- Safety system allowing elevation on slopes of up to 3°
- 23% gradeability
- 4.5 km/h maximum speed
- Low weight and long autonomy
- Robust, reliable design with easy maintenance
- Smooth driving with proportional controls

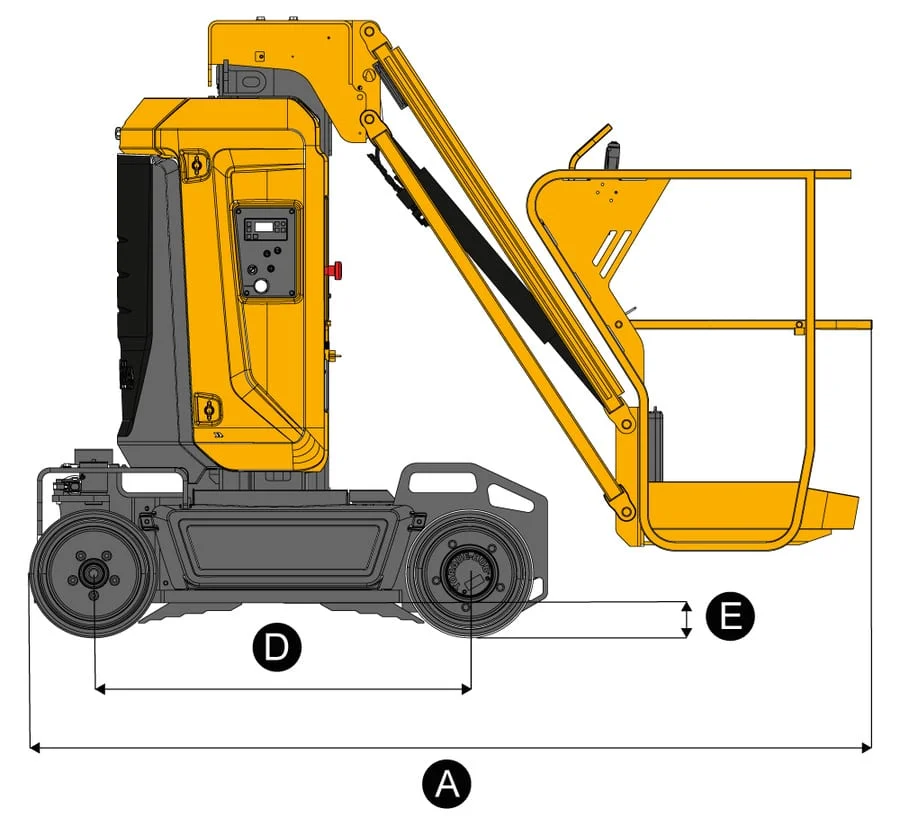

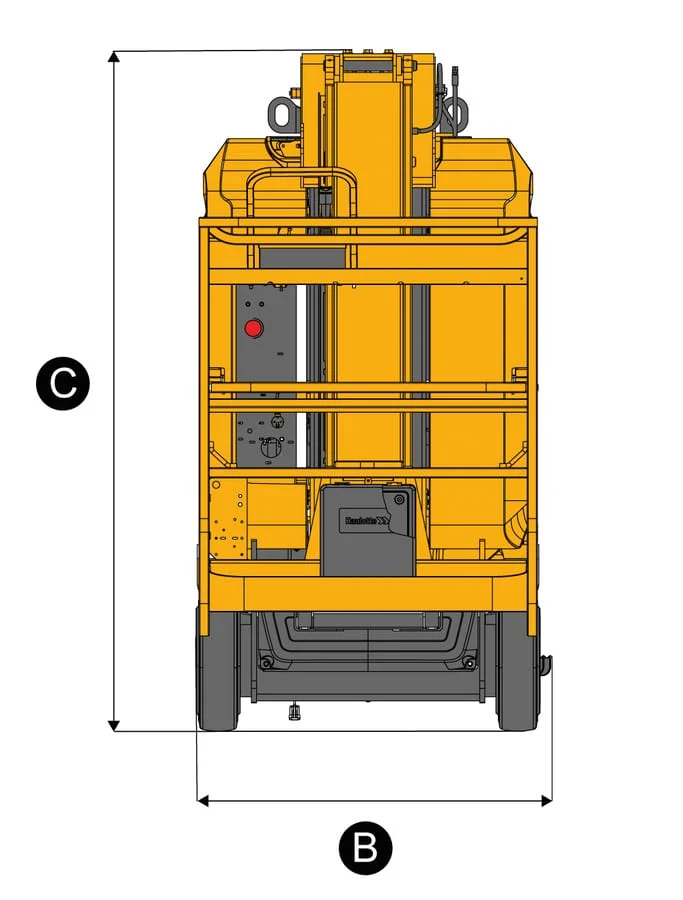

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · Star 10

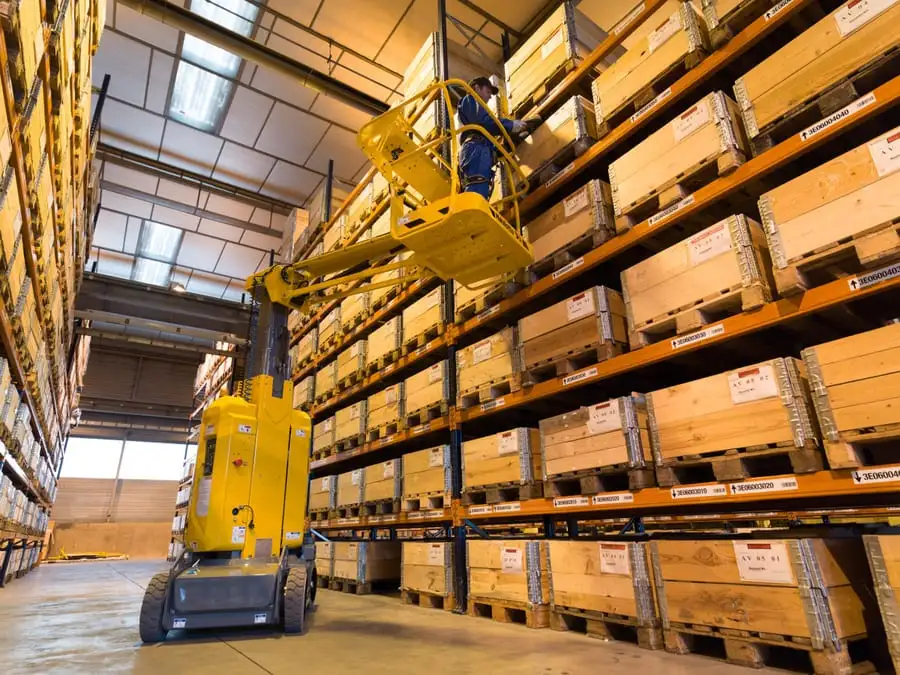

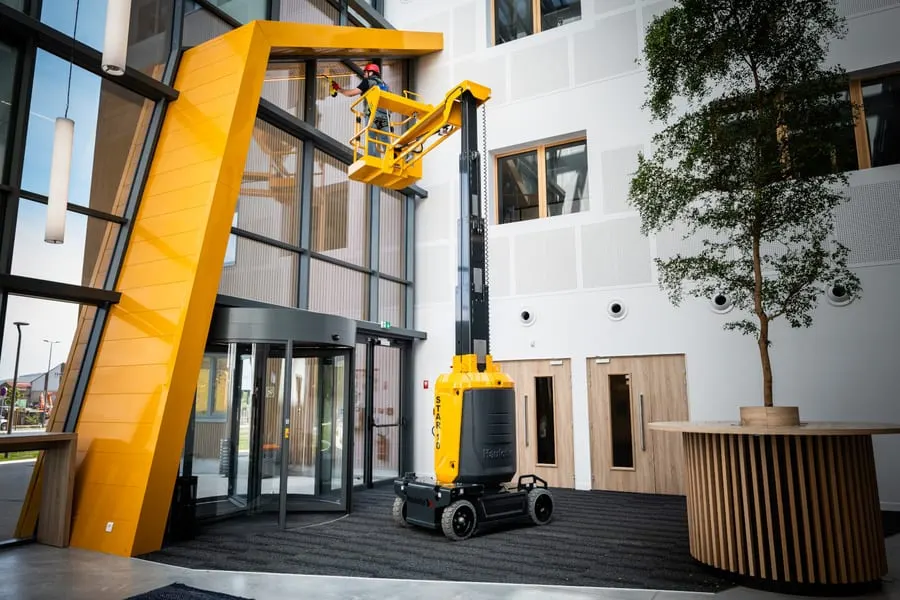

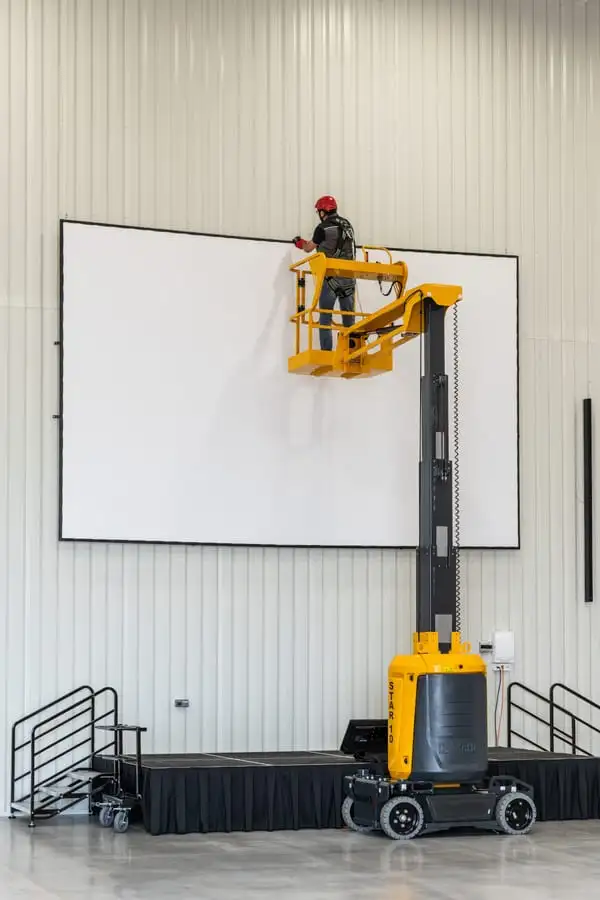

Star 10 in action
Haulotte · Vertical Mast Lifts
Technical specifications
Haulotte Star 10
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)
| Working height | 10 m |
|---|---|
| Platform height | 8 m |
| Outreach | 3 m |
| Load capacity | 200 kg |
| Length | 2.7 m |
| Width | 1 m |
| Stowed height | 1.99 m |
| Gradeability | 23% |
| Power supply | 24 V - 240 Amph |
| Weight | 2,735 kg |
FAQ
Questions about the Star 10
How high does the Haulotte Star 10 reach?
The Haulotte Star 10 reaches a working height of 10 m (platform height 8 m). Its horizontal outreach is 3 m.
What is the platform capacity of the Haulotte Star 10?
The Haulotte Star 10 carries up to 200 kg on the platform. The machine weighs 2.74 t.
Can the Haulotte Star 10 be used indoors?
Yes. The electric Haulotte Star 10 is suitable for indoor use.
Where can I buy the Haulotte Star 10 in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the Star 10 across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
Get a quote
Get the price and delivery time for the Star 10.
Our sales team will assess your job site and prepare an offer with the best configuration, options and delivery plan for you.
- New and used options
- On-site demonstration
- Service and spare parts backing
