LEO 15GT
The Teupen LEO 15GT is a hybrid spider platform offering 14.7 m working height, 200 kg platform capacity, 7.6 m outreach. Low ground pressure on delicate surfaces, superior manoeuvrability through narrow access.
- Working height
- 14.7 m
- Platform capacity
- 200 kg
- Outreach
- 7.6 m
- Machine weight
- 2.06 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the LEO 15GT?
- Powerful track drive system with hydraulic brakes
- Precise electro-hydraulic cable remote control for manoeuvring
- High-grip, non-marking white rubber tracks

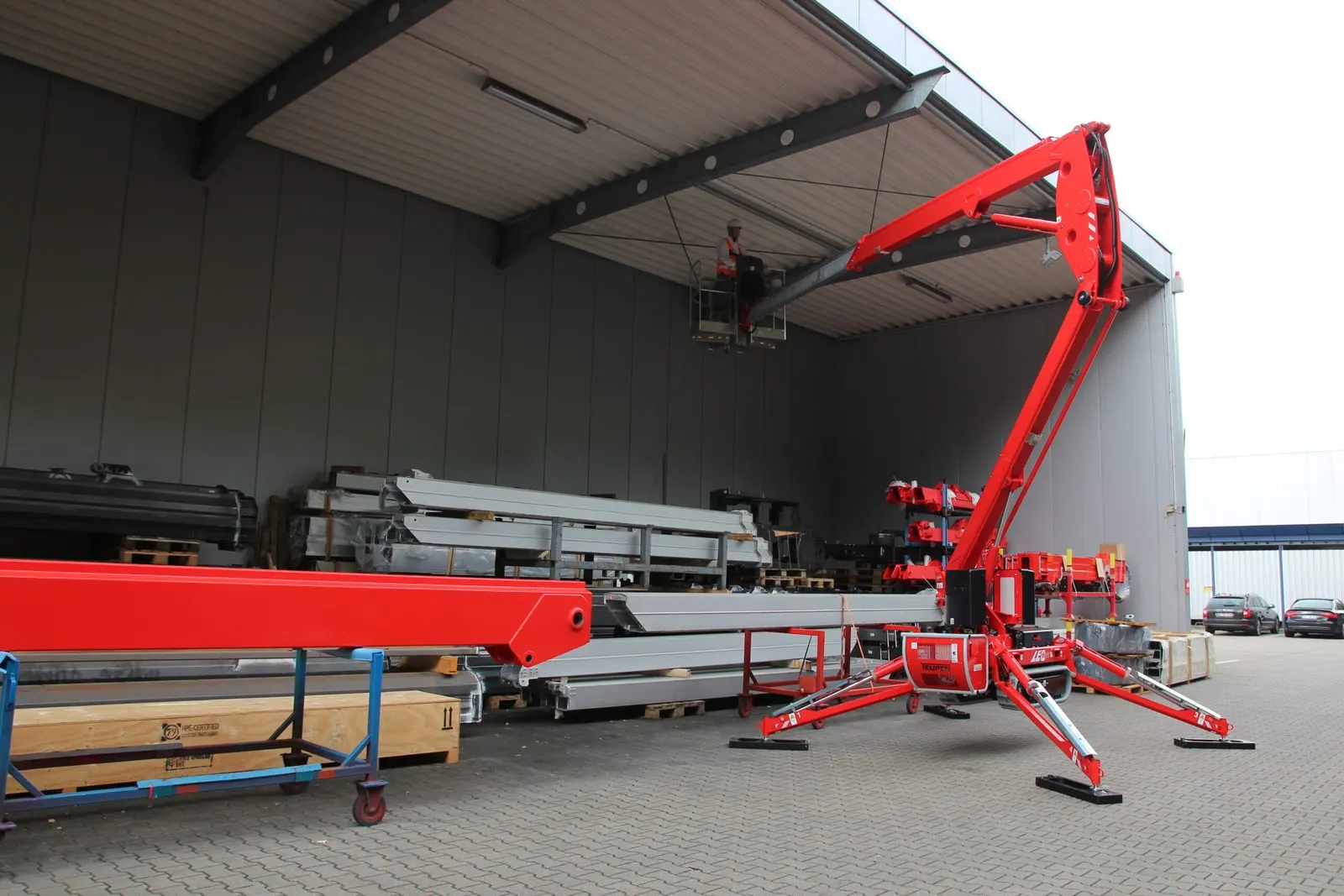

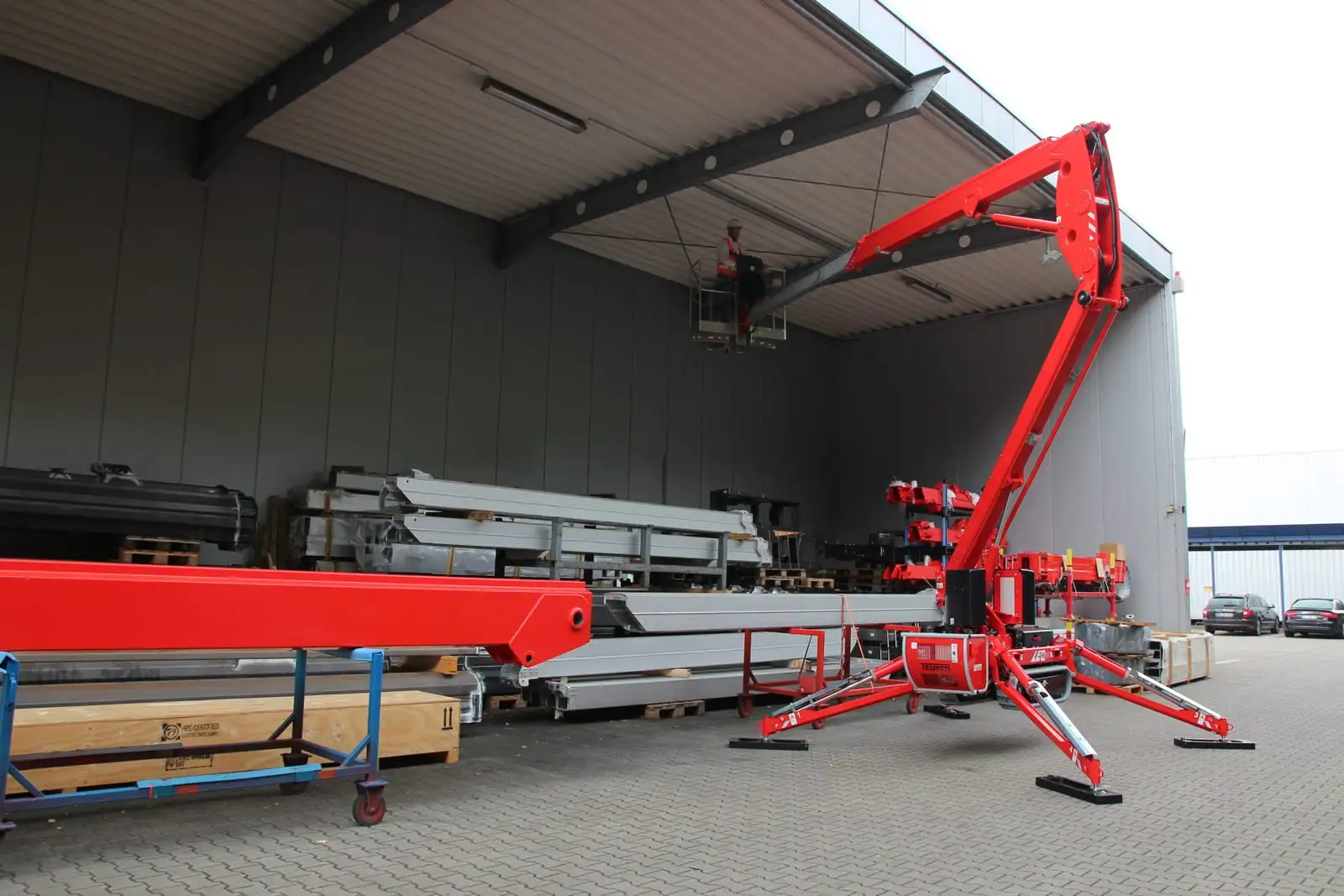

- Electro-hydraulic stabilising system with automatic levelling and ground pressure sensors
- Wear-resistant, low-friction outrigger pads
- All functions controllable from the platform

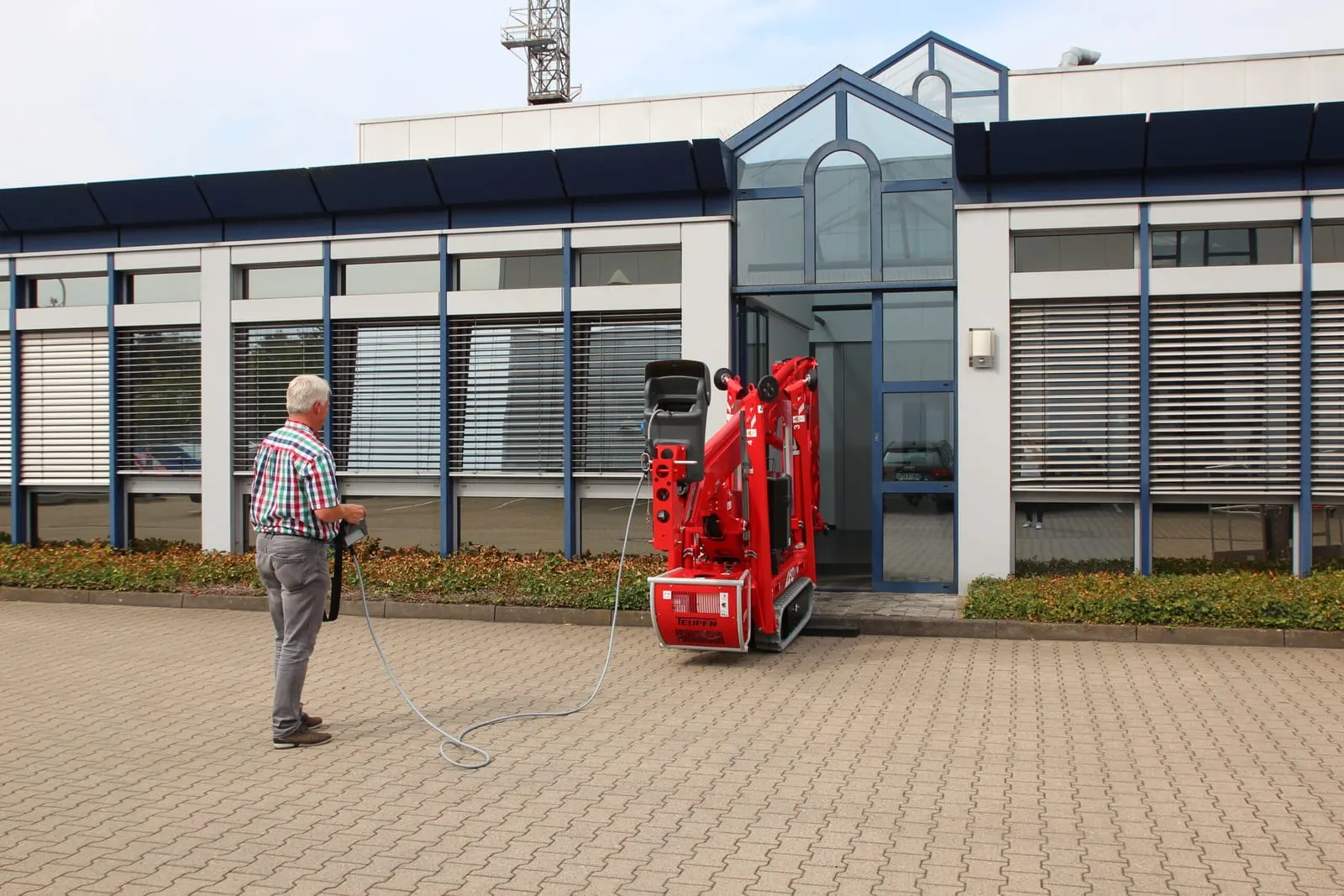

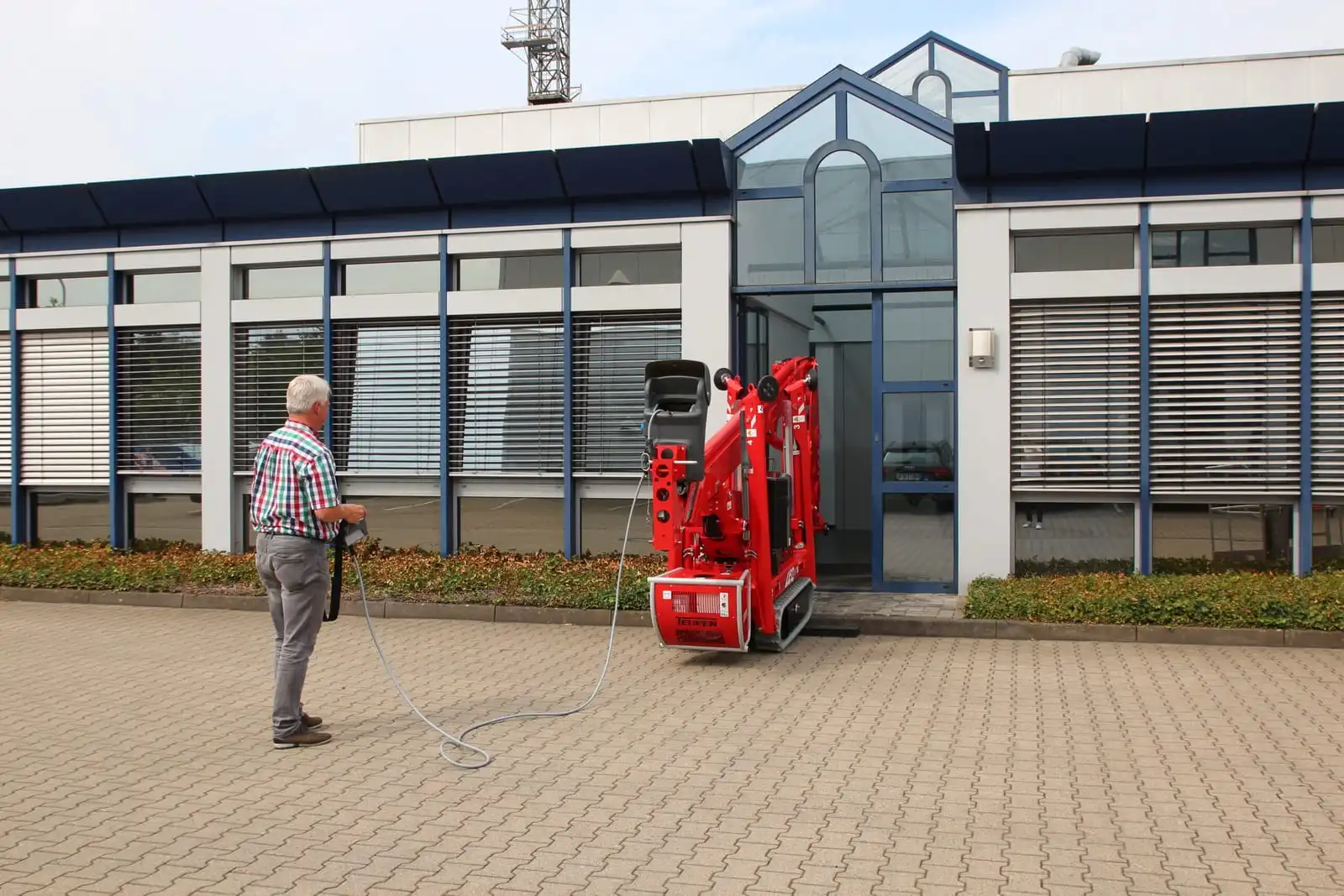

- Detachable cable remote control
- Lockable, robust control panel
- Dual power with electric motor and petrol engine
- Petrol engine start-stop control from the platform
- Hydraulic emergency lowering with hand pump

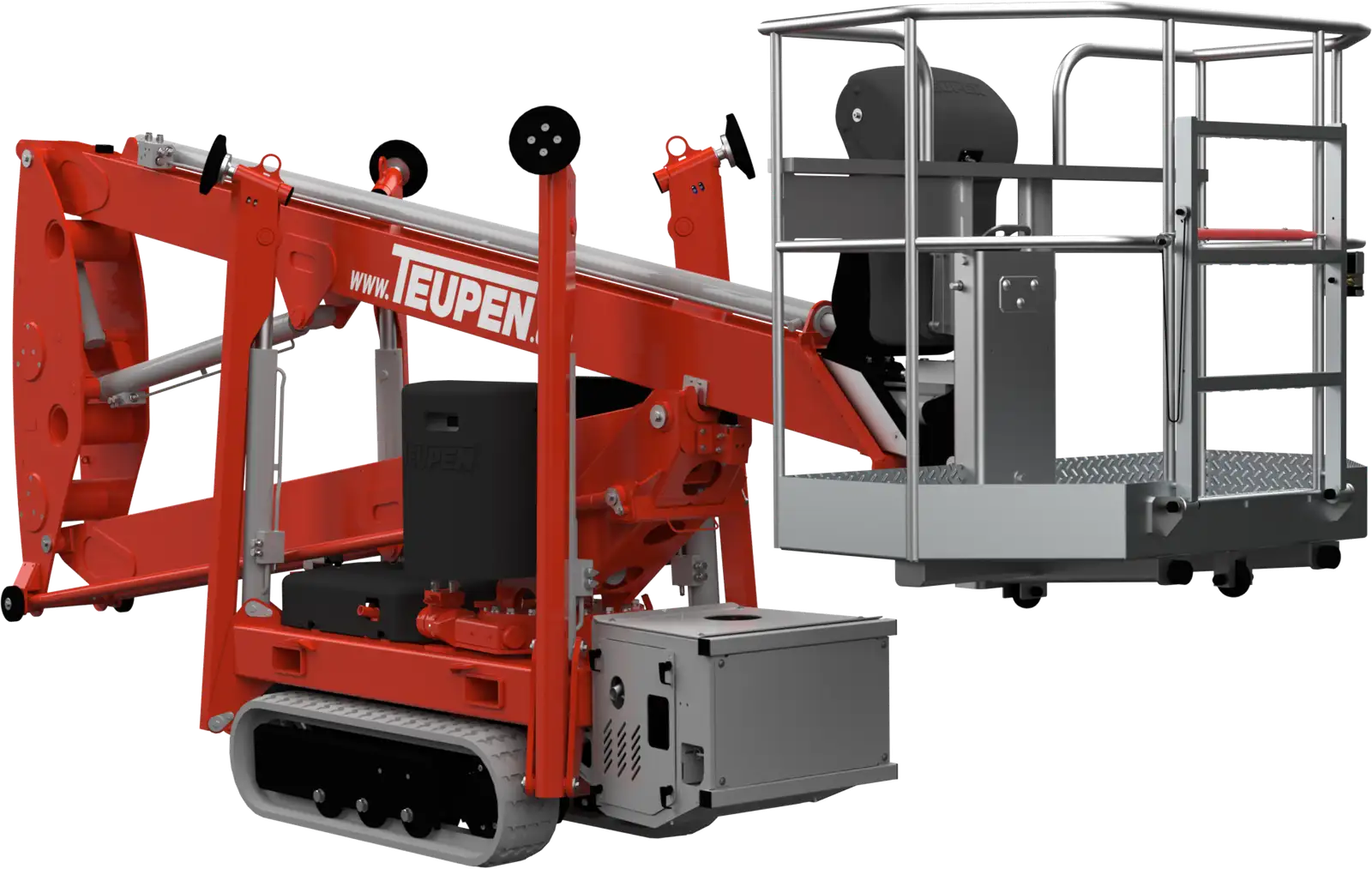

- Removable platform with harness anchorage points
- Can be driven without the platform
- Protected internal cable routing
- Hour meter
- Optional diesel engine and 48 V AGM battery drive system
Reach diagram
14.7 m Working height
12.7 m Platform
Scale: based on a 1.8 m human figure.
Teupen · Spider Platforms
Technical specifications
Teupen LEO 15GT
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)| Working height | 14.70 m |
|---|---|
| Platform height | 12.70 m |
| Outreach (200 kg) | 7.60 m |
| Up-and-over clearance | 5.40 m |
| Platform capacity | 200 kg |
| Turret rotation | 355° |
| Set-up slope | 13.0° / 23.0% |
| Max. gradeability | 16.7° / 30.0% |
| Drive speed | 1.0 km/h |
| Machine dimensions | 5.25 m x 0.78 m x 1.99 m |
| Machine length (without platform) | 4.52 m |
| Ground clearance | 0.42 m |
| Track dimensions | 1.18 m x 0.18 m |
| Outrigger footprint | 3.61 m x 3.15 m |
| Machine weight | 2,060 kg |
| Max. outrigger load | 12.80 kN |
| Electric motor | Single-phase, varies by country |
| Petrol engine | Honda iGX390, 8.7 kW / 11.7 hp |
| Fuel tank (petrol) | 6.1 l |
| Optional diesel engine | Hatz 1B30, 5.4 kW / 7.3 hp |
| Fuel tank (diesel) | 5.0 l |
| Optional battery | AGM 48 V |
FAQ
Questions about the LEO 15GT
How high does the Teupen LEO 15GT reach?
The Teupen LEO 15GT reaches a working height of 14.7 m (platform height 12.7 m). Its horizontal outreach is 7.6 m.
What is the platform capacity of the Teupen LEO 15GT?
The Teupen LEO 15GT carries up to 200 kg on the platform. The machine weighs 2.06 t.

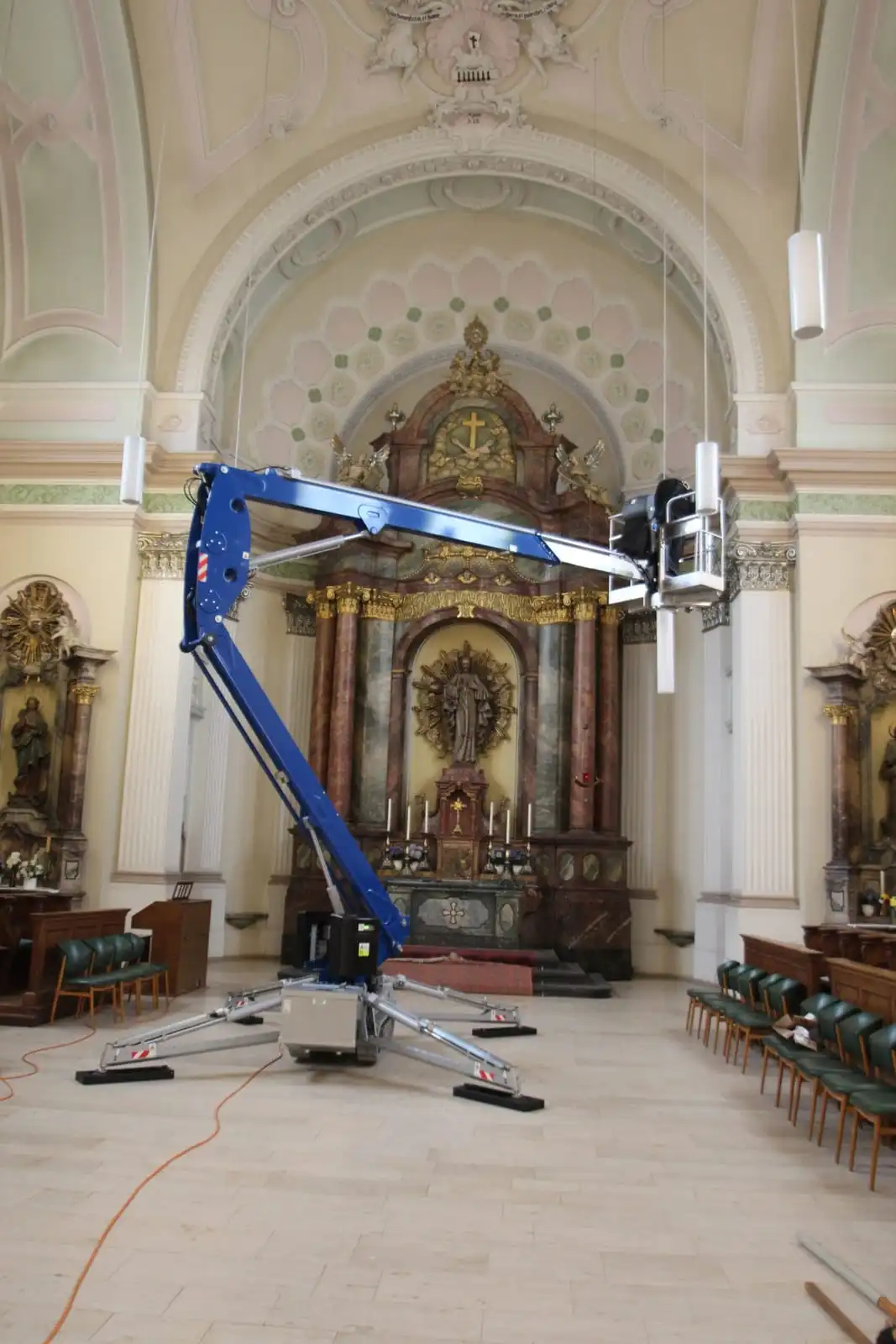

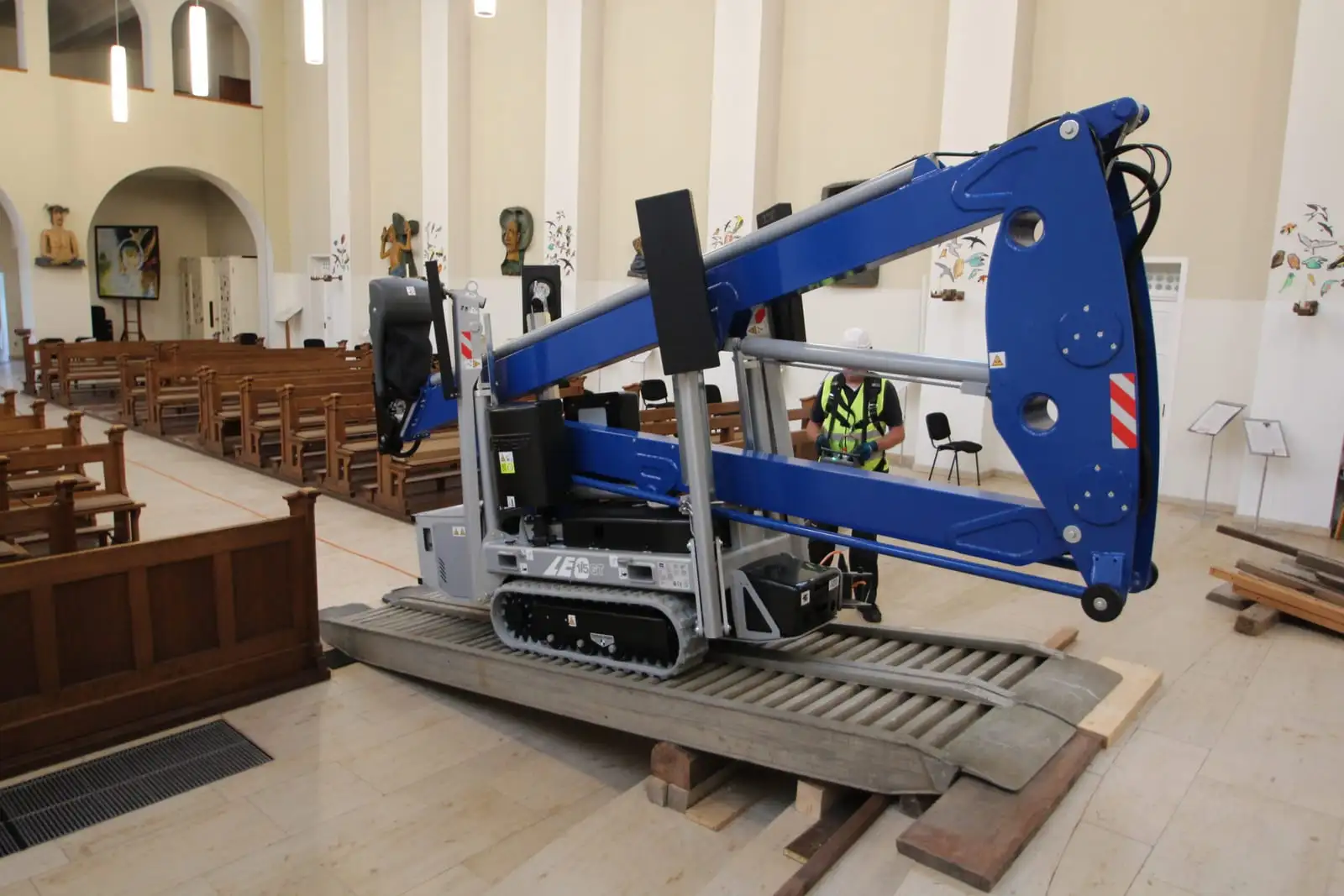

Can the Teupen LEO 15GT be used indoors?
Yes. The hybrid Teupen LEO 15GT is suitable for indoor use and can also work outdoors.
Where can I buy the Teupen LEO 15GT in Türkiye?
Acarlar Makine is the official Teupen distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the LEO 15GT across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
