Haulotte·Articulating Boom Lifts
HA20 RTJ PRO
The Haulotte HA20 RTJ PRO is a diesel articulating boom lift offering 20.6 m working height, 230 kg platform capacity, 12.2 m outreach. A boom that reaches up and over obstacles. Precise access to difficult points.
- Working height
- 20.6 m
- Platform capacity
- 230 kg
- Outreach
- 12.2 m
- Machine weight
- 9.6 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the HA20 RTJ PRO?
- 360° continuous turret rotation
- Fully proportional controls and simultaneous boom functions
- Tight turning radius (3.75 m)
- Zero tail swing
- 4-wheel drive and 4-wheel steering for better manoeuvrability
- Class-leading 12.2 m outreach
- Hydraulic differential lock system
- 42 cm ground clearance

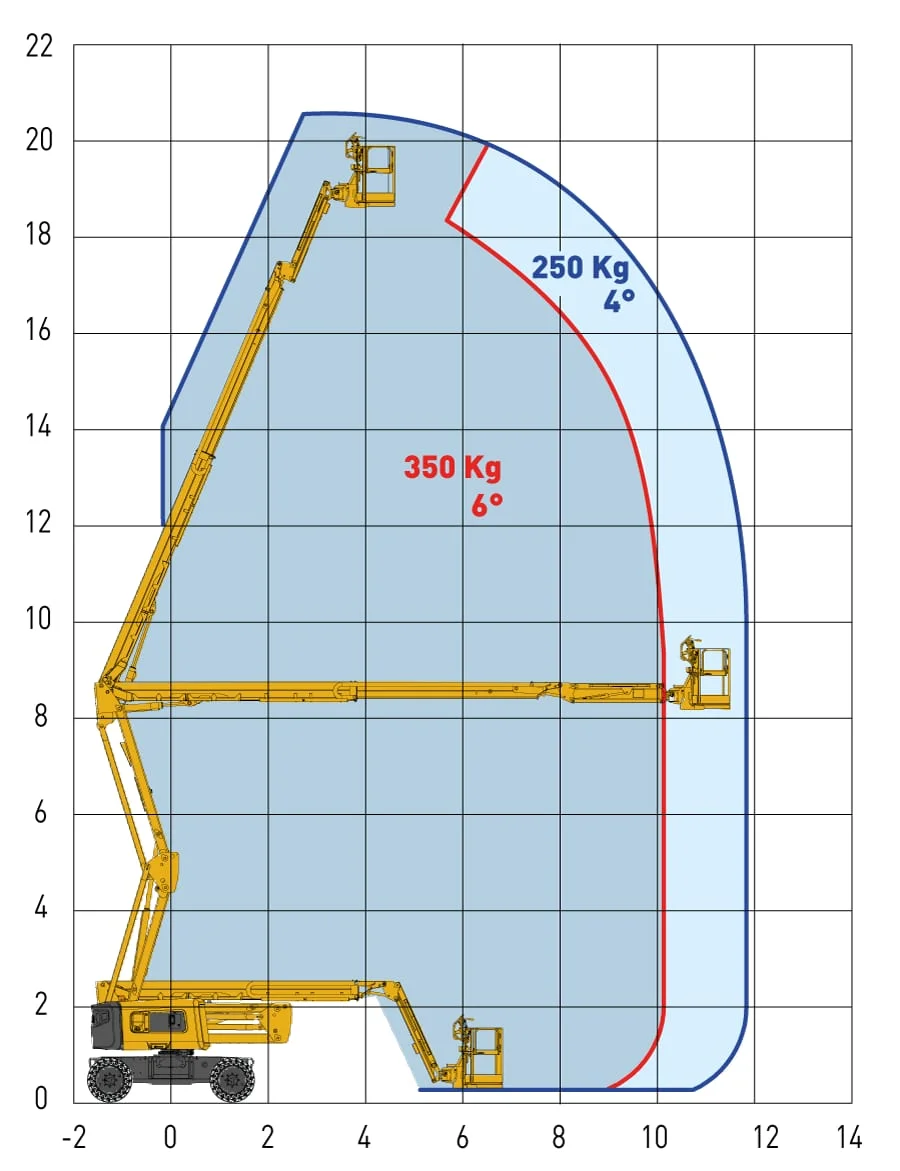

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · HA20 RTJ PRO

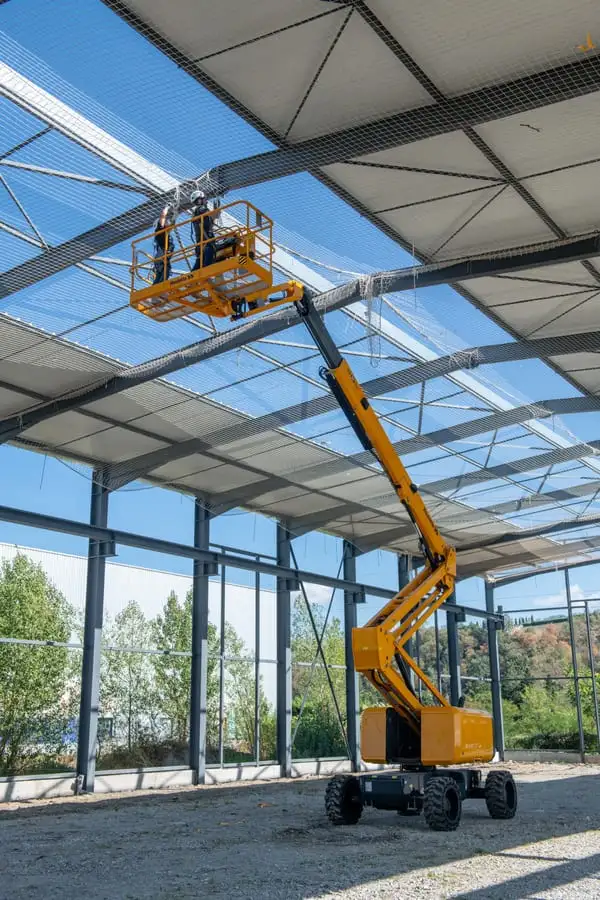

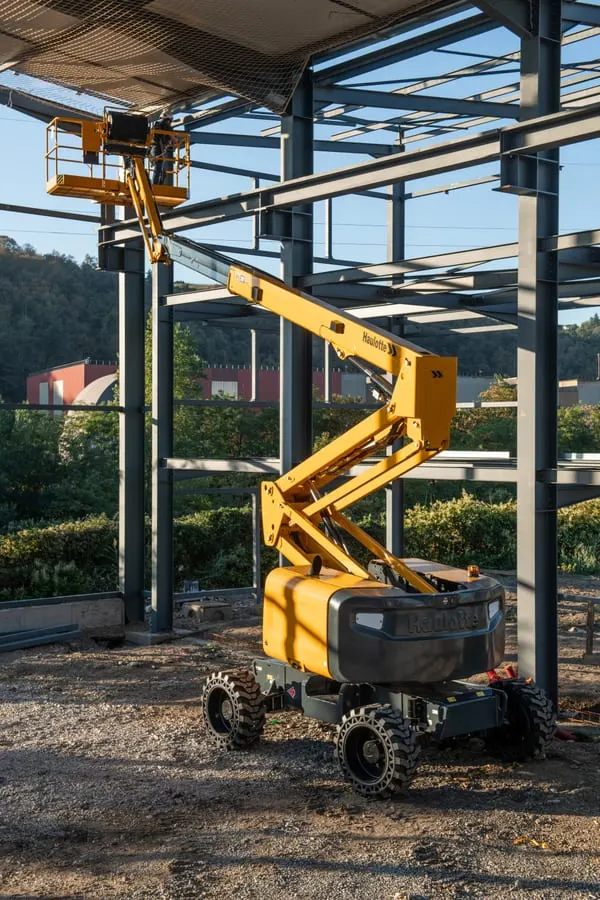

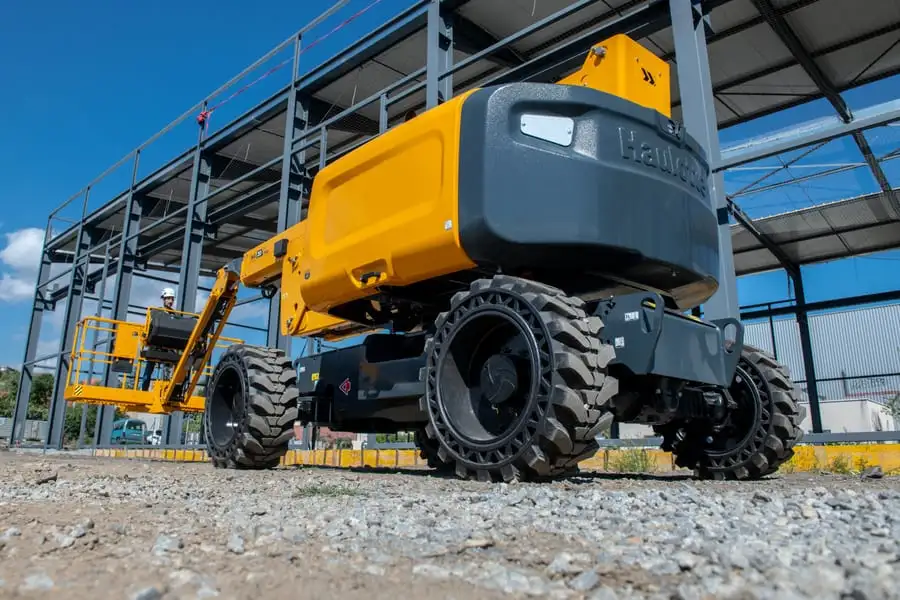

HA20 RTJ PRO in action
Haulotte · Articulating Boom Lifts
Technical specifications
Haulotte HA20 RTJ PRO
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)
| Working height | 20.60 m |
|---|---|
| Platform height | 18.60 m |
| Outreach | 12.2 m |
| Height at maximum outreach | 8.4 m |
| Load capacity | 230 kg |
| Width | 2.42 m |
| Stowed height | 2.51 m |
| Gradeability | 45% |
| Power supply | 36.5 kW - 49.5 hp |
| Weight | 9,600 kg |
FAQ
Questions about the HA20 RTJ PRO
How high does the Haulotte HA20 RTJ PRO reach?
The Haulotte HA20 RTJ PRO reaches a working height of 20.6 m (platform height 18.6 m). Its horizontal outreach is 12.2 m.
What is the platform capacity of the Haulotte HA20 RTJ PRO?
The Haulotte HA20 RTJ PRO carries up to 230 kg on the platform. The machine weighs 9.6 t.
Can the Haulotte HA20 RTJ PRO be used indoors?
The Haulotte HA20 RTJ PRO is designed mainly for outdoor and job-site use, including rough terrain.
Where can I buy the Haulotte HA20 RTJ PRO in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the HA20 RTJ PRO across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
Get a quote
Get the price and delivery time for the HA20 RTJ PRO.
Our sales team will assess your job site and prepare an offer with the best configuration, options and delivery plan for you.
- New and used options
- On-site demonstration
- Service and spare parts backing
