Haulotte·Articulating Boom Lifts
HA 20 E PRO
The Haulotte HA 20 E PRO is an electric articulating boom lift offering 20.5 m working height, 250 kg platform capacity, 11.9 m outreach. A boom that reaches up and over obstacles. Precise access to difficult points.
- Working height
- 20.5 m
- Platform capacity
- 250 kg
- Outreach
- 11.9 m
- Machine weight
- 9.94 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the HA 20 E PRO?
- Fully electric drive system
- Quiet, clean operation
- Versatile use indoors, outdoors and across different job sites
- More than a full day of all-electric operation
- Multiple fast-charging solutions
- Fast charging with optional removable Range Extender
- Optional Haulotte Extra Reach: platform capacity increased to 350 kg and slope tolerance up to 6°
- Oscillating axle system on the PRO model
- 4-wheel steering on the PRO model for high manoeuvrability
- Activ’Shield Bar anti-entrapment system on the PRO model
- Activ’Lighting System on the PRO model
- Smart energy management system
- Proportional and simultaneous movements
- Drive direction assistance system
- Optional transport handle for operator safety during loading and unloading

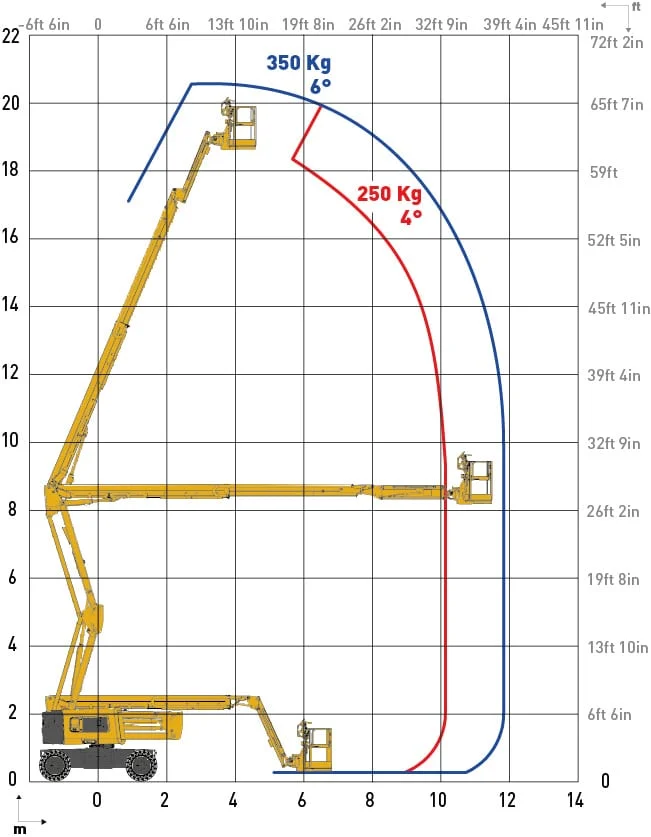

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · HA 20 E PRO
HA 20 E PRO in action
Haulotte · Articulating Boom Lifts
Technical specifications
Haulotte HA 20 E PRO
Values are based on manufacturer data and may vary with options and configuration.
| Working height | 20.5 m |
|---|---|
| Platform height | 18.5 m |
| Outreach | 11.9 m |
| Up-and-over clearance | 8.5 m |
| Platform capacity | 250 kg |
| Optional platform capacity | 350 kg |
| Machine length | 8.6 m |
| Transport / stowed length | 6.16 m |
| Machine width | 2.43 m |
| Machine height | 2.47 m |
| Transport / stowed height | 2.98 m |
| Wheelbase | 2.5 m |
| Ground clearance | 30 cm |
| Tail swing | 42 cm |
| Platform size | 1.8 x 0.8 m |
| Optional platform size | 2.40 x 0.9 m |
| Slope limit | 4° |
| Optional slope limit | 6° |
| Drive speed | 0.5 - 5 km/h |
| Max. wind speed | 45 km/h |
| Gradeability | 40% |
| Turning radius (outside) | HA20 E: 5.2 m / HA20 E PRO: 3.7 m |
| Battery | 72 V - 390 Ah (C20) |
| Machine weight | HA20 E: 9,790 kg / HA20 E PRO: 9,940 kg |
FAQ
Questions about the HA 20 E PRO
How high does the Haulotte HA 20 E PRO reach?
The Haulotte HA 20 E PRO reaches a working height of 20.5 m (platform height 18.5 m). Its horizontal outreach is 11.9 m.
What is the platform capacity of the Haulotte HA 20 E PRO?
The Haulotte HA 20 E PRO carries up to 250 kg on the platform. The machine weighs 9.94 t.
Can the Haulotte HA 20 E PRO be used indoors?
Yes. The electric Haulotte HA 20 E PRO is suitable for indoor use and can also work outdoors.
Where can I buy the Haulotte HA 20 E PRO in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the HA 20 E PRO across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
Get a quote
Get the price and delivery time for the HA 20 E PRO.
Our sales team will assess your job site and prepare an offer with the best configuration, options and delivery plan for you.
- New and used options
- On-site demonstration
- Service and spare parts backing
