Haulotte·Articulating Boom Lifts
HA 20 E
The Haulotte HA 20 E is an electric articulating boom lift offering 20.5 m working height, 250 kg platform capacity, 11.9 m outreach. A boom that reaches up and over obstacles. Precise access to difficult points.
- Working height
- 20.5 m
- Platform capacity
- 250 kg
- Outreach
- 11.9 m
- Machine weight
- 9.79 t
- Built to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Why choose the HA 20 E?
- Fully electric drive system
- Quiet, clean operation
- Versatile use indoors, outdoors and across different job sites
- More than a full day of all-electric operation
- Multiple fast-charging solutions
- Fast charging with optional removable Range Extender
- Optional Haulotte Extra Reach: platform capacity increased to 350 kg and slope tolerance up to 6°
- Smart energy management system
- Proportional and simultaneous movements
- Drive direction assistance system
- Optional transport handle for operator safety during loading and unloading

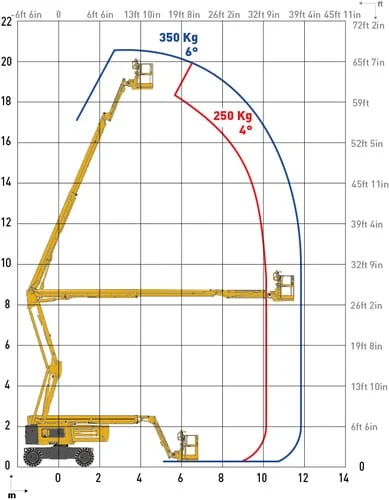

Working envelope
Kaynak: Haulotte teknik verileri.
Haulotte · HA 20 E

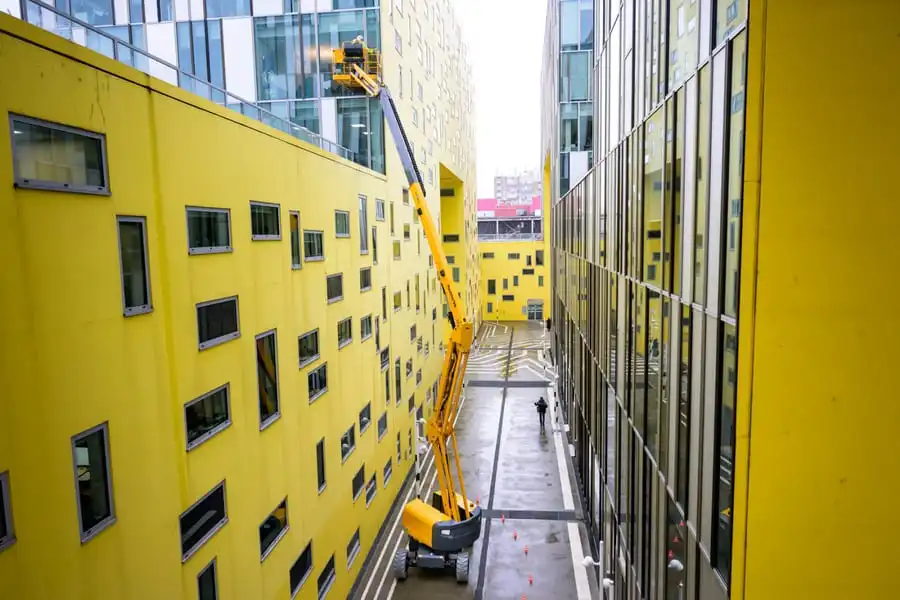

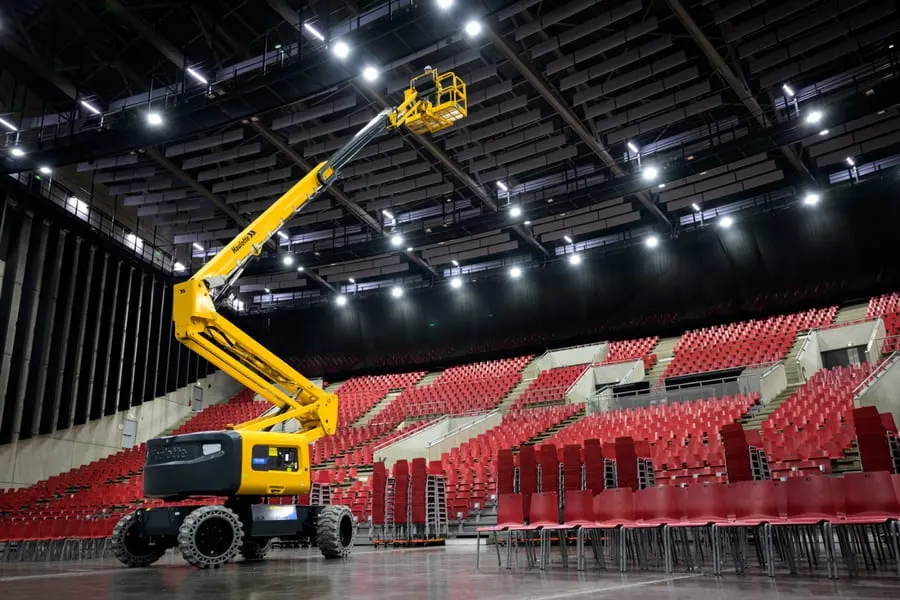

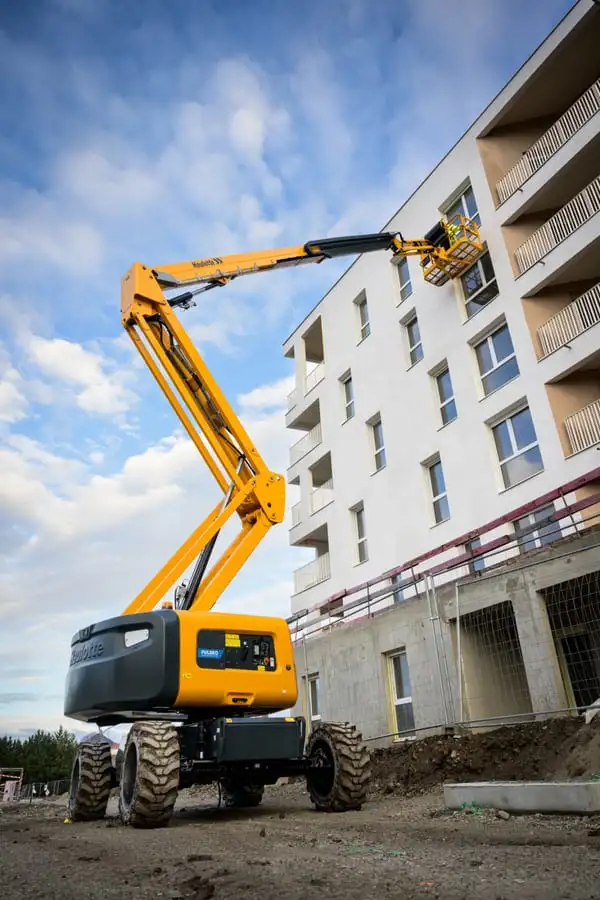

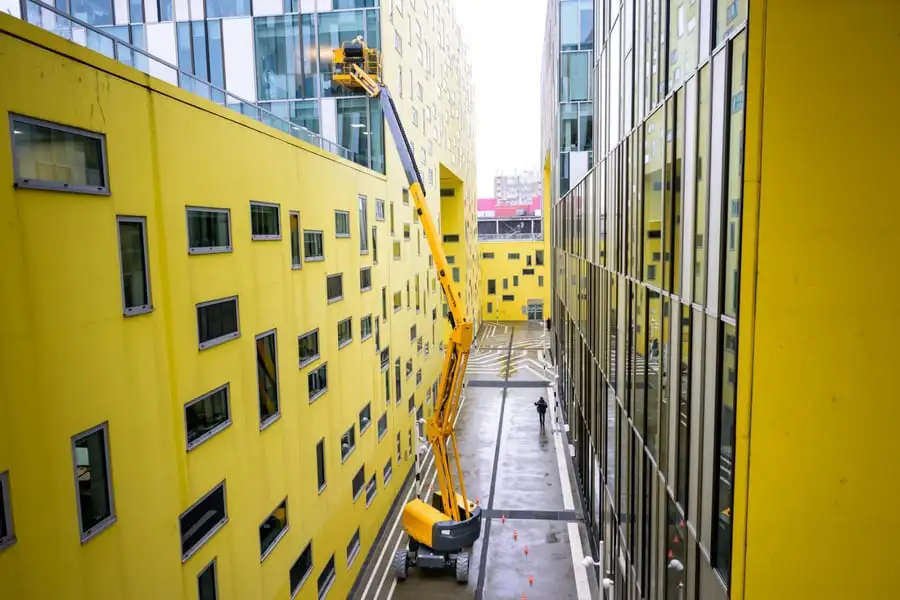

HA 20 E in action
Haulotte · Articulating Boom Lifts
Technical specifications
Haulotte HA 20 E
Values are based on manufacturer data and may vary with options and configuration.
Download brochure (PDF)| Working height | 20.5 m |
|---|---|
| Platform height | 18.5 m |
| Outreach | 11.9 m |
| Up-and-over clearance | 8.5 m |
| Platform capacity | 250 kg |
| Optional platform capacity | 350 kg |
| Machine length | 8.6 m |
| Transport / stowed length | 6.16 m |
| Machine width | 2.43 m |
| Machine height | 2.47 m |
| Transport / stowed height | 2.98 m |
| Wheelbase | 2.5 m |
| Ground clearance | 30 cm |
| Tail swing | 42 cm |
| Platform size | 1.8 x 0.8 m |
| Optional platform size | 2.40 x 0.9 m |
| Slope limit | 4° |
| Optional slope limit | 6° |
| Drive speed | 0.5 - 5 km/h |
| Max. wind speed | 45 km/h |
| Gradeability | 40% |
| Turning radius (outside) | HA20 E: 5.2 m / HA20 E PRO: 3.7 m |
| Battery | 72 V - 390 Ah (C20) |
| Machine weight | HA20 E: 9,790 kg / HA20 E PRO: 9,940 kg |
FAQ
Questions about the HA 20 E
How high does the Haulotte HA 20 E reach?
The Haulotte HA 20 E reaches a working height of 20.5 m (platform height 18.5 m). Its horizontal outreach is 11.9 m.
What is the platform capacity of the Haulotte HA 20 E?
The Haulotte HA 20 E carries up to 250 kg on the platform. The machine weighs 9.79 t.
Can the Haulotte HA 20 E be used indoors?
Yes. The electric Haulotte HA 20 E is suitable for indoor use and can also work outdoors.
Where can I buy the Haulotte HA 20 E in Türkiye?
Acarlar Makine is the official Haulotte distributor in Türkiye. It provides sales, 24/7 technical service, genuine spare parts and operator training for the HA 20 E across the country. For price and delivery time, fill in the quote form or call +90 216 581 49 49.
Get a quote
Get the price and delivery time for the HA 20 E.
Our sales team will assess your job site and prepare an offer with the best configuration, options and delivery plan for you.
- New and used options
- On-site demonstration
- Service and spare parts backing
